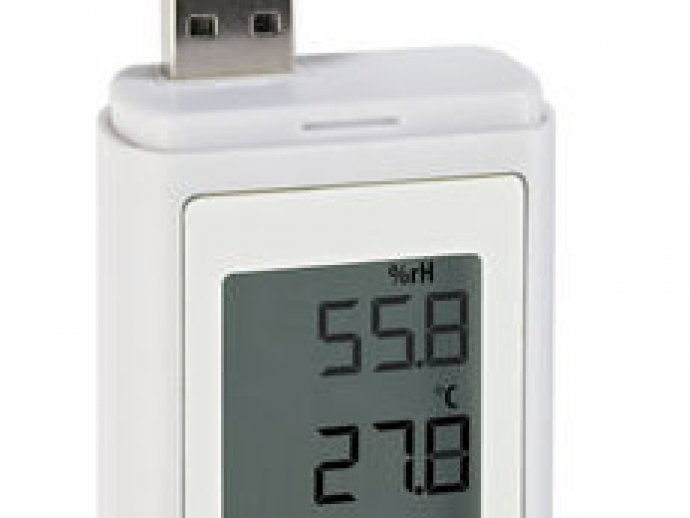

LOG210 PDF data logger for temperature and humidity

• Memory size up to 100,000 records
• Usable without software (default settings)
• Automatic PDF creation
• Movement sensor for shock recording e.g.:
door or windows closing
• Adjustable recording interval: 10 seconds…24 hours)
• Max-Min-Display memory (resettable)
• Time marking functions for measuring results
• Battery lifetime appr. 4 years (recording interval >15 minutes)
• Status- and Alarm-LEDs
• Includes wall mount

Logging interval:10 sec ... 24 hrs. preset 5 min.
Measuring range: -40°C ... +70°C / 0...100% rF
Resolution: 0,1°C / 0,1 %rF
Accuracy: ±0,5°C (0..+60°C), otherwise ±1,0°C / ±3%rH (40..60%), ±3.5%rH (20..40% and
60..80%), otherw. ±5%rH
Memory capacity: 100.000 measurements
Interface: USB
Power supply: 1x 3,6V 1/2 AA batteries
Housing: ABS plastic
Dimensions: 91.5 x 42 x 20 mm (L x W x H)
Weight: 200g

Parameter Name	Parameter Value
Measured quantity	temperature and humidity
Connector type	USB
Display	with LCD display
Applications	for monitoring storage for food applications for pharmaceutical applications for vaccines
Other characteristics	compact programmable
Memory capacity	Max.: 100,000 unit
