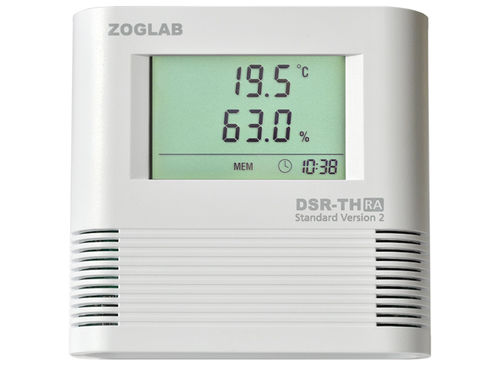

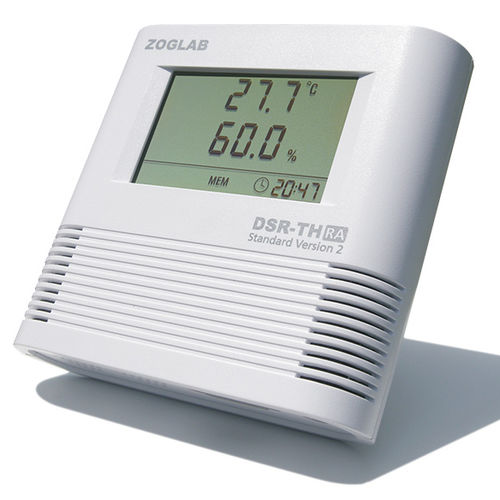

Data Logger for Temperature and Humidity

· Built-in compact high precision temperature and humidity sensors
· Selectable USB, RS232 / 485, LAN, wireless communication interfaces
· High definition LCD with wider viewing angles and redundant operation temperature
· Support on-line linear and nonlinear calibration
· Suitable for pharmaceutical, electronic production, biochemistry laboratory, museum management and other applications

Measuring Data
T Measuring Range: -30℃~70℃
T Accuracy: ±0.3℃(23℃±2℃), full scale ±0.5℃
T Resolution: 0.1℃/0.2℉
RH Measuring Range: 0%~100%RH
RH Accuracy: ±3%RH(10%~85%RH) / other range ±5%RH(Testing Environment 23℃±2℃) / ±2%RH(High-precision version)
RH Resolution: 0.1%RH

General
Memory Size: 10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values
Alarm: High level and low level, display+beep+backlight
Sampling Interval: 2s、5s、10s、30s、60s、255s
Logging Interval: 2seconds~24hours
Start with Delay Time: 1~120s
Start Mode: Start immediately / Time-lapse start / Timing start
End Mode: Full / FIFO / Presetting units / Timing end
Timing Start / End: Random start / End with format YYMMDD HHMMSS
Storage Temperature: -50℃~90℃
ESD Protection: ±25KV
Interface: RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G]
Battery: 3.6V lithium battery ×1
Battery Lifetime: Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode）
RTC Battery: CR2032
Clock Accuracy: <12 mins/year
External voltage: 5~24V DC
Software: ANALYSIS
IP Class: IP54

Sensing Probe
Model: Internal

General Feature
Dimensions: 123×117.3×33.4mm
Display Area: 66×42mm
Housing: ABS+PC,flame-retardant,toxicity and halogen free
Weight: 260g

Parameter Name	Parameter Value
Measured quantity	temperature and humidity
Connector type	USB, wireless, RS-485, RS-232
Display	with LCD display
Applications	for pharmaceutical applications
Other characteristics	compact IP54
