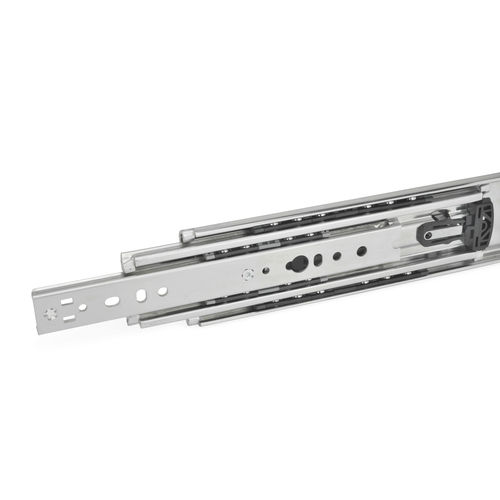

Telescopic slides GN 1440 are installed vertically and in pairs. The stroke reaches ≈100 % of the nominal length l1 (full extension). Patented plastic ball cages ensure extremely smooth running of the slide.

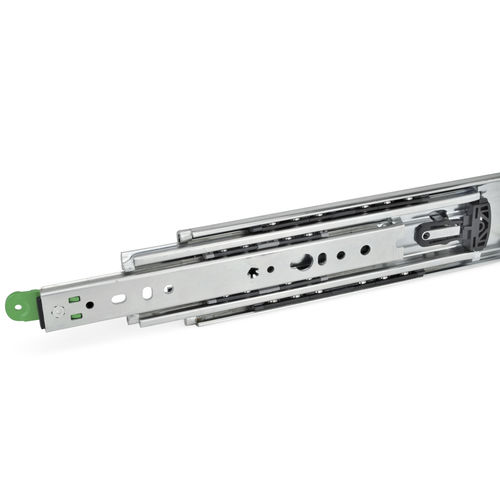

Telescopic slides of various types, for example, with and without latch, can be combined freely, which is why GN 1440 is delivered as a single unit and not in pairs. Thanks to the symmetrical design, all types can be installed on either the right or left side on the extension.

All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.

Parameter Name	Parameter Value
Extension	full-extension, telescopic
Type	ball bearing
Other characteristics	zinc-plated steel
Load (kg)	0 - 325
Stroke (mm)	298 - 1504
