Description
ATEB telemetry makes it possible to synchronously sample over 256 measurement channels.

Data is sent by radio, making it easy to integrate the ATEB telemetry on a turbine or a propeller (aerospace or GAS turbine, wind turbine, drone).

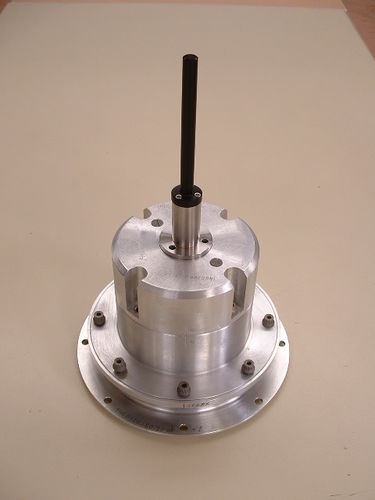

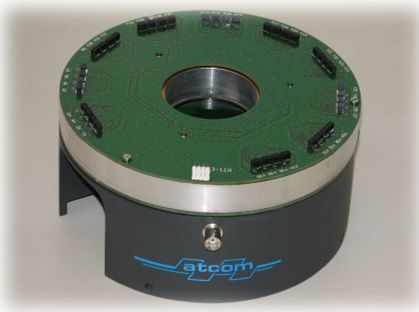

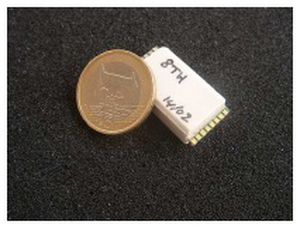

The size and weight of the ATEB telemetry make it possible to fix it directly at the centre of the turbine or propeller.

Spécifications

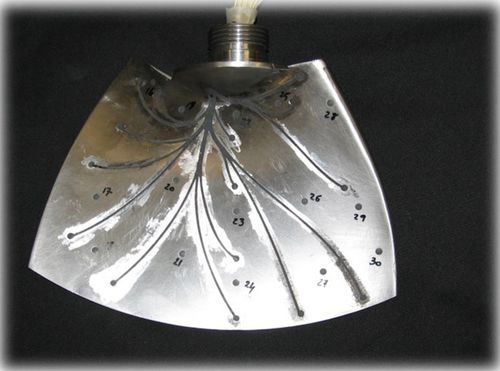

•Static or dynamic stress measurement 120 to 1200 Ohm gauge
•On-board gauge integrity test (using a sinusoid current generator)
•Maximum dephasing between channels: < 3°
•Temperature measurement: Type K-N-J thermocouple 1200°C max.

Bandwidth:
•15Hz – 40khz per measurement channel (dynamic gauge)
•0Hz – 20khz per measurement channel (static gauge)

Options :

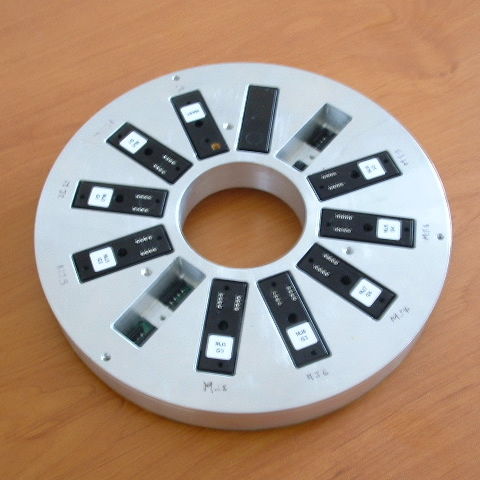

•from 4 to 256 measurement channels
•specific multi-channel wide bandwidth system on request
•Radio specifications:
•PCM-PSK digital data transmission
•Max. transmission power: 5mW
•Band: 2.4GHz
•Remote control: on/off, gain, bandwidth and gauge current setting on the fly

Technical specifications:

•Power supply: Rechargeable battery or induction
•Working temperature: -50°C/+125°C
•Acceleration: 40000 G
•Receiver:
•Output correction (sinx / x)
•Analogue output + / -5V or 0/10V
•Digital Ethernet data output
