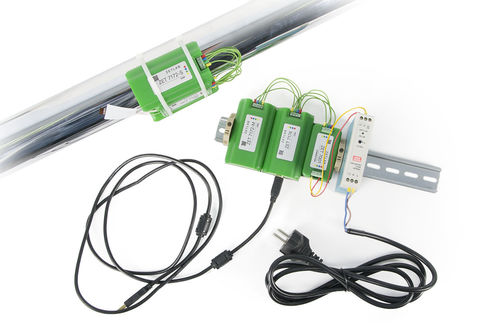

ZET 7172 telemetering system is purposed to arrange wireless access to the instrument line segment using radio channel.

Telemetering system includes two modules: ZET 7172-M and ZET 7172-S.

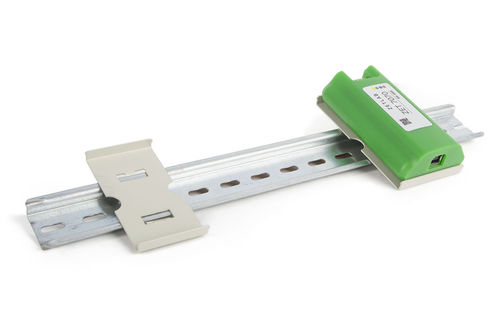

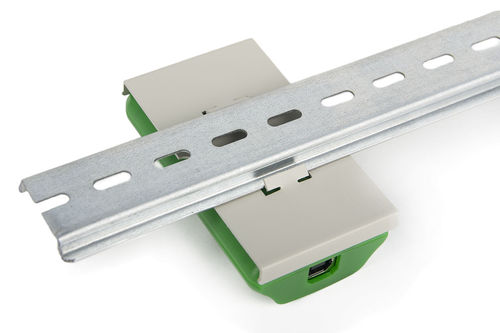

ZET 7172-S module is mounted proximal to measuring modules and functions as data transmitter, converting the CAN interface into radio-channel. In turn, ZET 7172-M module receives data over radio channel and transduces it into CAN interface for further translation of measured information to PC, where it is further processed and analyzed. It functions as receiver, installed proximal to interface converter.

Measured information is transferred only one way from ZET 7172-S transmitter to ZET 7172-M receiver, but service information is transmitted in both ways, which allows adjusting measuring modules proximal to ZET 7172-S transmitter.

ZET 7172-S module has an integrated linear accelerometer. This option is convenient when testing rotating constructions, as it permits to minimize content of instrument system and provide wireless data transmission.

The figure shows structural instrument communications net diagram based on digital transducers with wireless data transmission.

Parameter Name	Parameter Value
