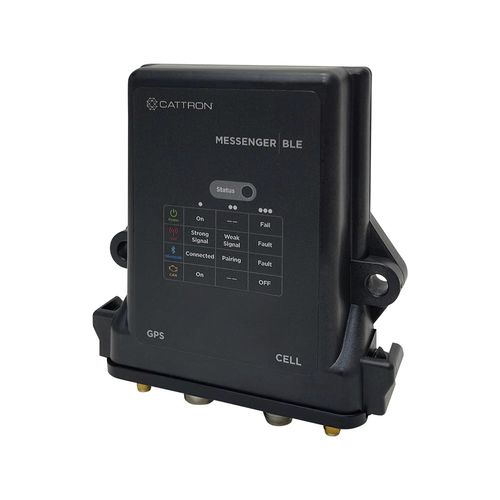

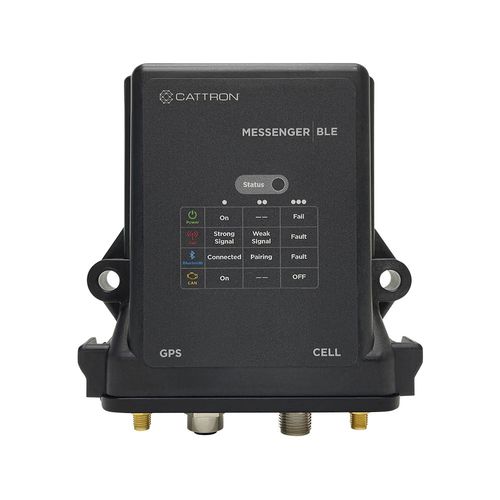

The Messenger BLE provides two-way communication on remote equipment. The telemetry monitoring system is supported by Bluetooth, cellular and satellite communication coverage and works with electronic engine controllers, ECUs, devices on a CANbus, devices connected via Modbus RTU and direct connections to digital and analog signals.

-Powered by RemoteIQ™
-Bluetooth®, cellular or satellite coverage
-Monitor and report standard CANbus message
-Independent Modbus master and slave communication
-RemoteIQ Messenger BLE Device Manager app (For iOS and Android)
-One-year limited warranty

Works with electronic engine controllers, ECU's, devices on a CANbus, devices connected via Modbus RTU and direct connections to digital and analog signals

Outputs: Two output relays controlled manually or automatically based on analog values exceeding thresholds or digital inputs changing state

Reporting pre-configured to monitor and report standard CANbus engine messages, daily fuel rate, maximum and minimum values of all engine parameters are automatically reported

Engine diagnostics are filtered to eliminate excessive reporting on intermittent faults

Supports multiple CANbus speeds, multiple devices on a single CANbus and reading and writing (for OEMs)

Independent Modbus master and slave communication over two serial ports

Supported Modbus functions include 16-bit and 32-bit versions of: register, coil, float and packed-digital reads and writes

Optional satellite modem enables coverage in hard-to-reach areas around the globe

Parameter Name	Parameter Value
