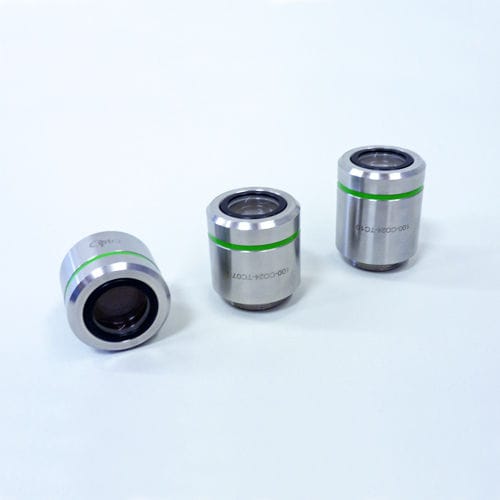

Compact Telecentric Lense Mag. 0.5x, 0.75x, 1.0x

With a normal lens, magnification differs when changing the distance from the lens. Additionally features which are located at the edge of an image are viewed at a different angle than objects in the centre of the field of view (FoV). Telecentric lenses are used for performing exact measurements of objects because they offer images which represent the exact size of an object regardless of its position within the FoV or its distance from the lens. Like all our products we offer custom made lenses tailored to your specific needs on request.

Technical Data:
Article Number: 100-CO24-TC05
Magnification 0.5x / W.D. 68mm / F-No. 6 / Field Depths 0.3mm / Telecentricity 0.75'' Distortion < 1% / FoV 1/3'' 9.6mm x 7.2mm / FoV 1/2'' 12.8mm x 9.6mm

Article Number: 100-CO24-TC75
Magnification 0.75x / W.D. 52mm / F-No. 9 / Field Depths 0.3mm / Telecentricity 0.05'' Distortion < 1% / FoV 1/3'' 6.4mm x 4.8mm / FoV 1/2'' 8.5mm x 6.4mm

Article Number: 100-CO24-TC10
Magnification 1.0x / W.D. 44mm / F-No. 12 / Field Depths 0.3mm / Telecentricity 0.02'' Distortion < 0.1% / FoV 1/3'' 4.8mm x 3.6mm / FoV 1/2'' 6.4mm x 4.8mm

Parameter Name	Parameter Value
Type	telecentric
Technical applications	measuring for process monitoring compact
Other characteristics	high-resolution
