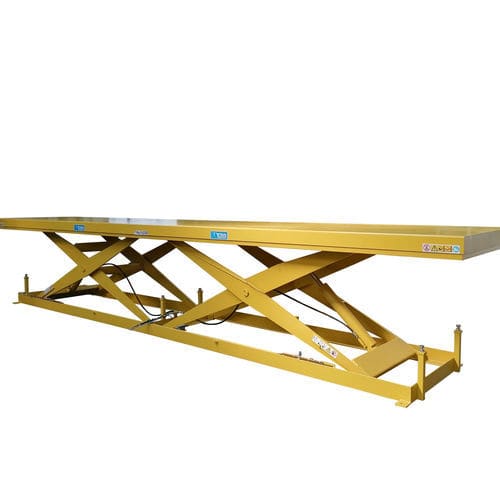

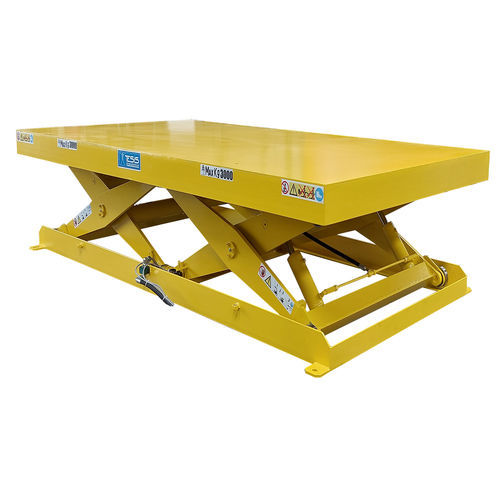

Rugged and reliable, tandem and multiple scissor XL series lift tables are available in many load capacities and sizes, also on demand.

Characteristics:
Extendable push button or pedal controls
Power unit and electrical panel incorporated in the machine or external
Three-phase AC motor

Safety:
Anti-crushing device under the loading platform
Maintenance blocks
Parachute valve on cylinders

EC marking
Compliance with EN 1570 standards

Customizations:
-Dimensions on request
-Various platform top configurations
-Manual or motorized connection ramp
-Bellow skirting
-Fixed or removable railings
-Gates on board or at landing
-Push button holder column
-UL/CSA components
-Single-phase motor
-Configuration for DC Power (DC Motor)
-Manufacture in stainless steel
-Food grade hydraulic oil

Parameter Name	Parameter Value
Technology	tandem scissor
Operation	hydraulic, pneumatic, electro-hydarulic
Type	stationary mobile
Application	loading for heavy loads loading dock
Other characteristics	custom with safety barrier with ramp high-performance with protective bellows
Capacity	Min.: 0 kg (0 lb)Max.: 80,000 kg (176,369.8 lb)
Lifting height	Min.: 500 mm (20 in)Max.: 3,000 mm (118 in)
