Exclusive Gates and Tanals
The only power transmission belt with mechanical assembly

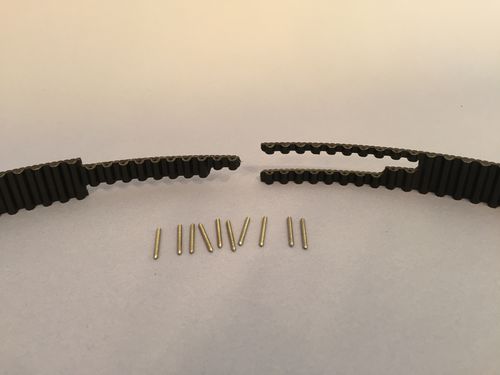

The mechanical fastening system ERO Joint® - developed by Tanals - provide various possibilities to assemble belts on-site without having to disassemble pulleys or axes and to release the transmission.
ERO joint® Ultimate and ERO Joint® are developed for and with Gates by Tanals. They offer unique solutions system for fast and easy repair of power transmission.
The cutting shapes of the junction fingers have been engineered for fatigue resistance and maximum tensile strength of the Poly Chain® Carbon™ Volt® material.
The power of Gates combined with the know-how of Tanals.

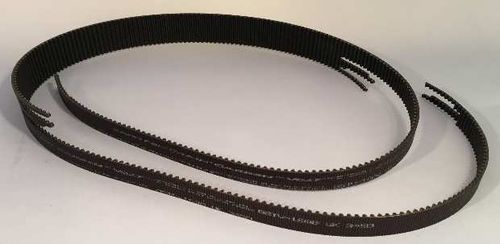

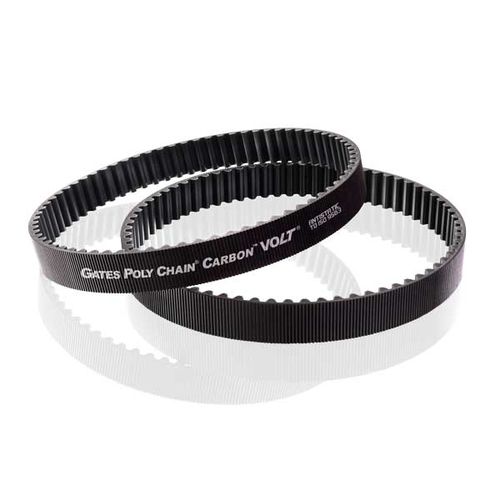

Poly Chain® Carbon™ Volt® outstanding mechanical performance combined to ERO Joint® provide the only existing transmission belt with mechanical assembly.
The only existing transmission belt with mechanical assembly, a unique solution on the market.
It allows to repair any installation initially fitted with HTD belts.
Suitable in any length, can be adapted to any installation
Suitable in any width superior or equal to 20mm
Fitting with screws or pins (M2 for 8m, M3 for 14M)
ADVANTAGES
Fast installation, no equipment to disassemble (pulleys, axes, hoods, tensioners…)
This belt features patented static-conductive fibres that safely transfer static electricity to carbon tensile cords.
High mechanical resistance for a long-lasting repair. The Poly Chain® Carbon™ Volt® ERO Joint® transmits 30% power of a Poly Chain® Carbon™ Volt®, more than a rubber belt.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Material |
polyurethane
|
| Product applications |
|
| Sector |
industrial, for the textile industry, for the automotive industry
|
| Other characteristics |
|
| Pitch |
8 mm, 14 mm (0.31 in)
|
