Exclusive Gates and Tanals

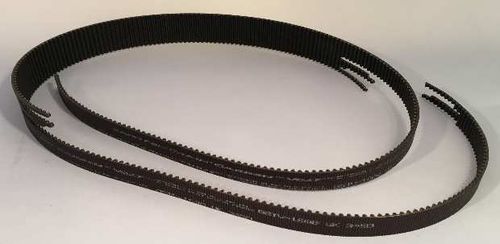

The only power transmission belt with mechanical assembly
The mechanical fastening system ERO Joint® - developed by Tanals - provide various possibilities to assemble belts on-site without having to disassemble pulleys or axes and to release the transmission.
ERO Joint® and ERO joint® Ultimate are developed for and with Gates by Tanals. They offer unique solutions system for rapid and easy repair of power transmission.
The cutting shapes of the junction fingers have been engineered for fatigue resistance and maximum tensile strength of the Poly Chain® Carbon™ Volt® material.
The power of Gates combined with the creativity of Tanals.
Poly Chain® Carbon™ Volt® outstanding mechanical performance combined to patented innovative solution ERO Joint® Ultimate offer the only transmission belt with mechanical assembly whose performances equal those of all other endless belts on the market.
A sustainable solution able to replace any rubber belt.
(Can be fitted on HTD pulleys in case of breakdown).
Always ½ continuous tight side: Junctions do not transmit stress
The mechanical resistance equals half that of a Poly Chain® Carbon™ Volt® (Tanals Patent)
Poly Chain® Carbon™ Volt® ERO Joint® Ultimate runs on same sprocket diameters than Poly Chain® Carbon™ Volt®
Fitting to any length, can be adapted to any installation
Fitting to any width superior or equal to 20mm
Suitable with screws or pins (M2 for 8m, M3 for 14M)
ADVANTAGES
Swift installation, no machinery disassembly (tensioners, hoods, pulleys, axes…)
This belt features patented static-conductive fibres that safely transfer static electricity to carbon tensile cords.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Material |
polyurethane
|
| Product applications |
|
| Sector |
industrial, for the textile industry, for the automotive industry
|
| Other characteristics |
|
| Pitch |
8 mm, 14 mm (0.31 in)
|
