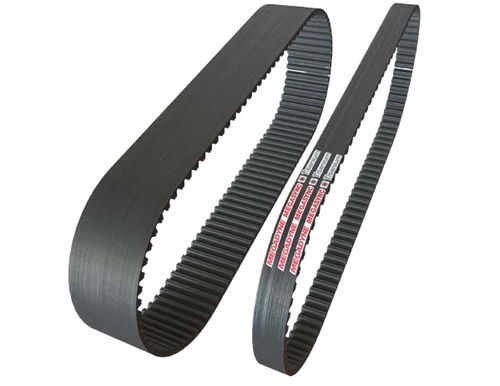

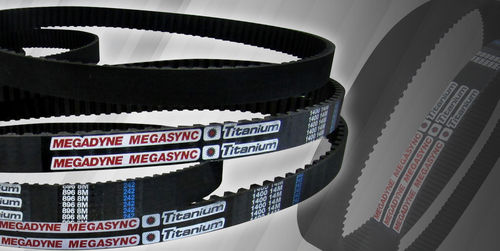

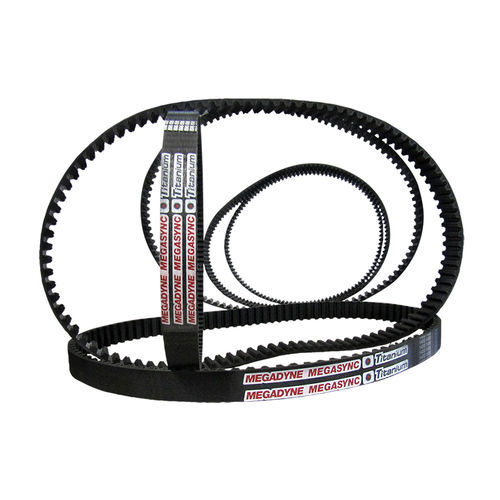

Megadyne introduces one of the highest power density synchronous power transmission belt on the market!

Next generation of synchronous belts surpassing the Platinum and other premium belt drives on the market today.

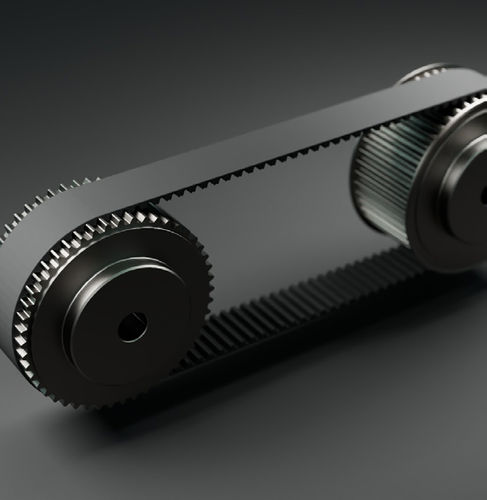

When you want to replace chains, gears or you need to provide a superior belt drive solution - you need MEGADYNE MEGASYNC™ TITANIUM.

With an enhanced design and innovative materials, Titanium has all the features and performance to make it the ideal belting solution in the most demanding applications.

Features
SUPERIOR POWER CAPACITY WITH A MORE COMPACT DRIVE SYSTEM

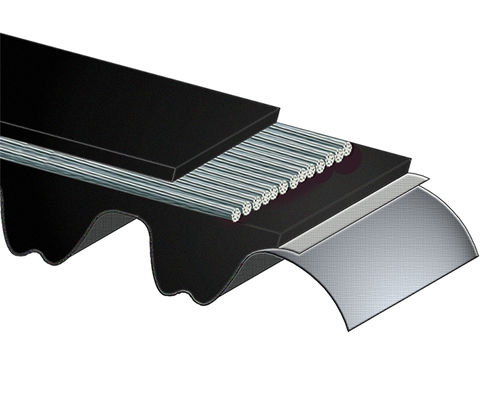

Main components
BELT BODY
HNBR Elastomer uniquely cross-linked to increase tooth rigidity & durability.
- Superior resistance to flex fatigue
- Expanded range of working temperatures from -40°C (-40°F) to +120°C (+248°F) and ability to withstand peaks up to +140°C (+284°F)
- Highly resistant to mineral oils and abrasion

CORDS
100% carbon, the cord provides extreme dimensional stability (no stretch) under static and dynamic operational loads.
- Maintenance-free, no need to re-tension
- Dual spiral S & Z twist cord provides neutral tracking
- Extremely accurate tooth meshing resulting in the reduction of abrasion, vibrations, & noise

TOOTH FACING FABRIC
High-performing special fabric bonded to the tooth surface.
- Improved torque carrying capacity and tooth shear resistance
- Special film provides self-lubricating properties
- Long lasting durability and antistatic properties
- Low friction, increased drive efficiency with less sprocket wear

Parameter Name	Parameter Value
Type	synchronous endless
Material	HNBR
Sector	industrial, multi-function
Other characteristics	high-performance anti-static high-power high-resistance maintenance-free low-noise oil-resistant abrasion-resistant
Length (mm)	248 - 4956
Pitch	8 mm, 14 mm (0.31 in)
Temperature	Min.: -40 °C (-40 °F)Max.: 140 °C (284 °F)
