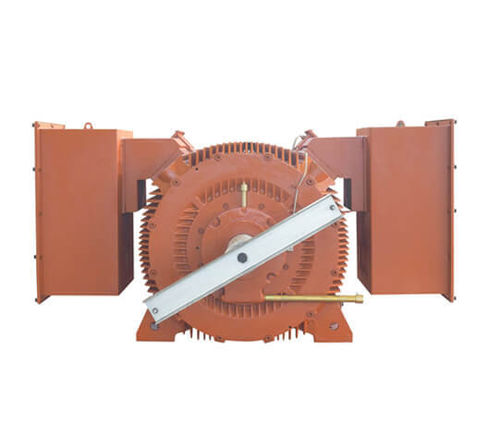

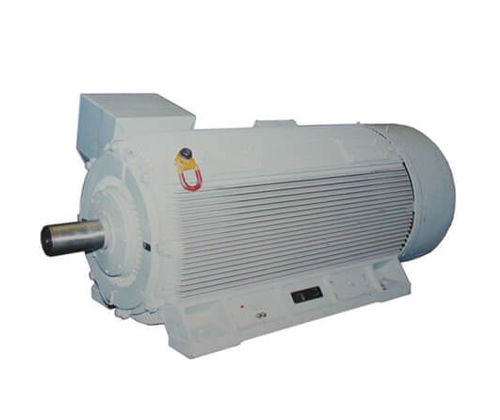

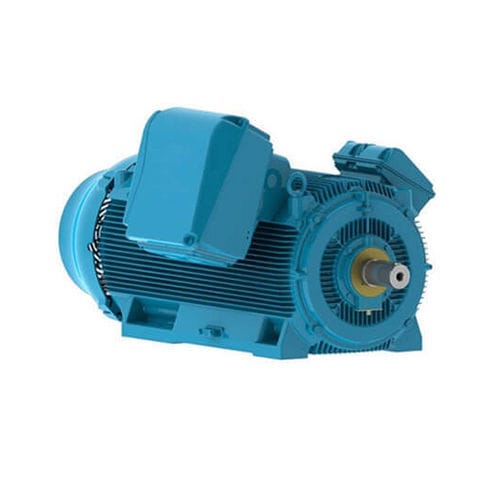

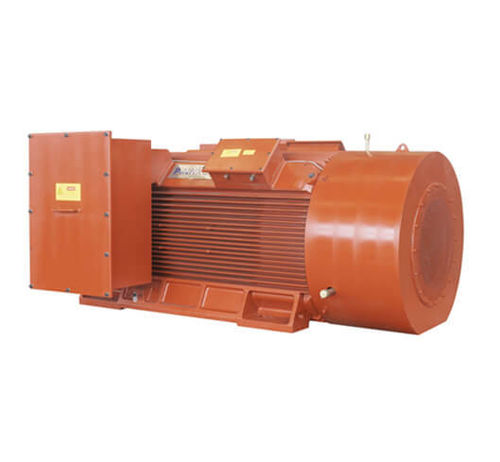

Y2PT rib cooling high voltage cast iron motor have a rugged cast iron frame. They are rib cooled motors with IC411 cooling and IP55 protection as standard. The motors are also available with IC416 cooling and optional

Frame Including: 315,355,400,450,500,560,630

Cooling method: IC411, IC416

Mounting type: IMB3, IMB35, IMV1

Color: blue or as requirement

Insulation class: F or H

Temperature rise: B or F

Accessory: PT100, PTC, PTO, Space heater, SPM vibration sensors

Y2PT rib cooling variable frequency high voltage cast iron motors offering more density power than has ever been achieved before.is often use a motor one frame size smaller than other standard products. This helps to save space and enables more compact installations. Y2PT variable friendcy compact motors have a rugged cast iron frame. They are rib cooled motors with IC411 cooling and IP55 protection as standard. The motors are also available with IC416 cooling and optional IP66 protection.

Y2PT compact vfd high voltage motors cover the output range up to 3200 kW, and they are available in shaft heights from 315 to 630 mm. The motors can be mounted horizontally vertical mounting available for 2 poles up to shaft height 355). for Y2pt variable frequency motors echnical data at 50 Hz and 60 Hz, and for synchronous speed from 500 to 3600 rpmare extremely efficient, even at partial load, and they have low noise levels.

Parameter Name	Parameter Value
Type	synchronous
Voltage (V)	1000 - 1000
Protection class	IP55 IP54 IP66 rugged waterproof dust-proof
Configuration	cast iron cast iron frame compact vertical
Number of poles	2-pole
Applications	for pumps blower for conveyors for compressors for crusher
Other characteristics	variable-frequency high-voltage high-efficiency low-noise IE3 IE2 IE4 IE5 variable-speed constant speed inverter duty UL certified NEMA
Power (W)	200000 - 200000 160000 - 160000
Rotational speed (rpm)	500 - 3600
