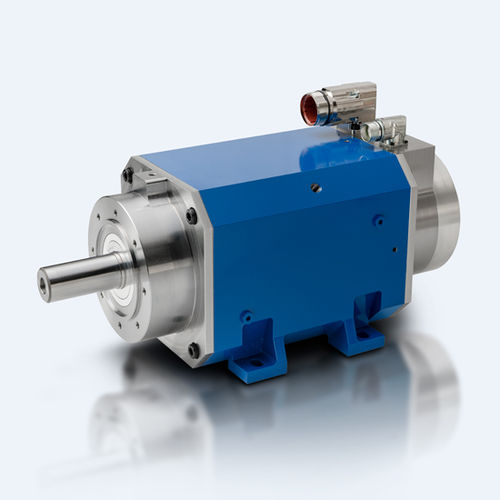

All four-pole synchronous drives in the MSP Basic series offer impressive benefits in terms of their high efficient water cooling and compact size. Water cooling provides an optimal heat dissipation. This ensures reliability of the motor’s performance and also protects the immediate environment from unnecessary heating. The drives in the MSP Basic series are therefore the ideal solution for thermally sensitive applications. Their compliance with existing standards also allows fast integration into existing systems.

The MSP Basic motor series combines outstanding power density with GMN-specific knowledge on bearing support and non-contact sealing in high speed drives. This makes them high efficient direct drives with extraordinary performance capabilities. All motors in this series provide maximum balancing quality and are classified in degree of protection IP44.

TECHNICAL DATA (COMPLETE MOTORS)

High-speed direct drives
High power density
Small installation space
Type according to IEC 60034-7
Water cooling
Mating dimensions designed according to DIN EN 50347
Speed-resistant bearings
Non-contact seals

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Protection class	IP44
Configuration	compact
Number of poles	4-pole
Cooling mechanism	water-cooled
Other characteristics	high-efficiency high-speed direct-drive
Power (W)	7500 - 45000
Intensity (A)	13 - 78
Torque (Nm)	6 - 48
Rotational speed (rpm)	9000 - 18000
