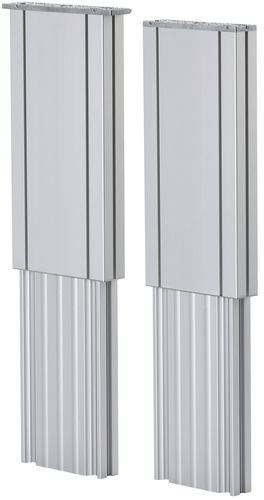

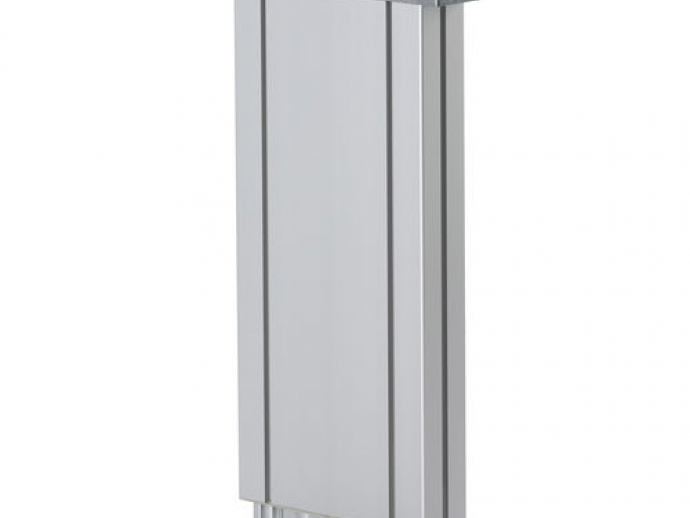

Hexalift 2.0

Our successful lifter family Hexalift has been on the market for a couple of years to manufacture ergonomically adjustable work benches and many thousands have been produced and delivered.
With the 2nd generation, Hexalift Generation 2.0, we added several innovative and practical features:

• - The motor cable can be led out in two or three different positions. You can decide on which side of the lifter the cable should come out.
• - The motor cable (D= 7mm) is pluggable. If it needs to be replaced, it can be easily done in shortest time.
• - The motor cable has a square Molex Mini Fit Jr. plug (plug size 22 x 14mm). This plug is a snap-in connector and can transmit higher currents. With this change we offer our standard controller in a new version with Molex plug socket. I
• - The mounting/top cover plate on the outer/large profile with integrated cable guide is available in two versions: with or without mounting lugs. If you use the version with mounting lugs, there is no need any more for an additional mounting plate.
• - A newly designed alloy foot plate (part number EZ02407) can be used on the inner/small profile as a mounting plate.
• - The Hexalift Generation 2.0 is available in four different versions:

o - V1: 3200N / 9mm/s
o - V2: 2000N / 18mm/s
o - V3: 2000N / 9mm/s
o - V4: 800N / 18mm/s

• - The new Hexalift versions V2 und V3 can be operated with 2000N pushing force. This has been approved by detailed testing.
• - All four versions offer maximum statical loads with the weight placed centrally or offset.
• - The new Hexalift Generation 2.0 comes in ESD proof version as a standard.

Parameter Name	Parameter Value
Electrical characteristics	synchronous low-noise 24-volt
Other characteristics	telescopic heavy-duty
Voltage DC	24V DC
Force (N)	800 - 3200
Stroke (mm)	220 - 700
