– AC three phase induction motor (with and without speed sensor)
– PM synchronous motors

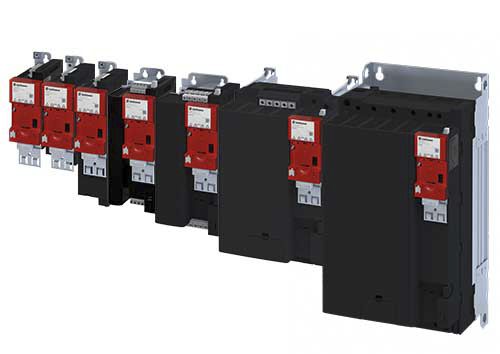

The different control modes allow to optimize the performance of electric motors applied to quadratic, linear, inertial and gravitational loads. SINUS S are easily interfaceable with most PLC and automation systems thanks to the wide range of field buses.

Main features
– Flexible I/O (Standard I/O & Application I/O); inputs are PNP/NPN configurable.
– Removal terminal blocks to facilitate the connections of cables.
– Internal and external +24 V supply – Side by side installation (Zero clearance mounting)
– Integrated EMC filter (for TT, TN, IT networks): C1, C2 or C3 Category (EN61800-3), depending on models and motor cable length.
– EMC shield for signal cables on the control unit.
– DC BUS terminals available for Energy Sharing applications
– Built-in dynamic braking unit – Dedicated PTC input for motor thermal protection
– HEAVY DUTY overload: 200% for 3 s – 150% for 60 s
– LIGHT DUTY overload: 120% for 60 s
– Wide operational temperature range: -10°C up to 55°C
– Compliant to RoHS2, CE, EAC, UL standards.

Flexible AC Drive for modularity maximization Options:
– Standard I/O control unit with integrated FIELD BUS: CANopen, Modbus RTU, Profibus, EtherCAT, Profinet, Ethernet-IP, Modbus TCP
– Diagnostic and programming module to PC via USB/WLAN and new REMOTE SINUS software tool
– LCD display/keypad with EASY NAVIGATION functionality
– Cabinet front door remotable LCD display/keypad thanks to IP65 Kit
– Safety Torque Off (STO). SIL 3 class (EN 61800-5-2), PL “e” level (ISO 13849-1) – EMC shield for power cables connections
– Three phase input inductances
– RFI filters

Parameter Name	Parameter Value
Type	synchronous Modbus
Mounting	SIL
Applications	for induction motors PLC LCD display for heavy-duty applications for permanent magnet motors
Protection class	IP20 IP65
Other characteristics	compact modular EMC PROFIBUS CANopen EtherCAT IP20
Power (W)	400 - 37000
