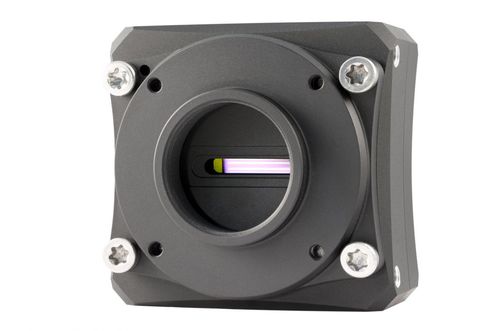

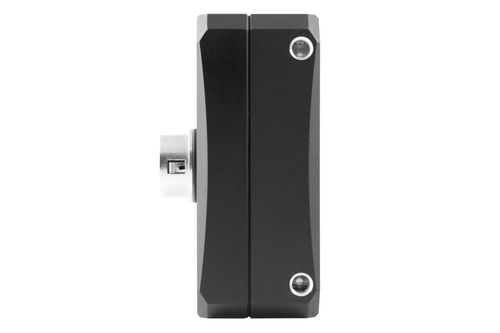

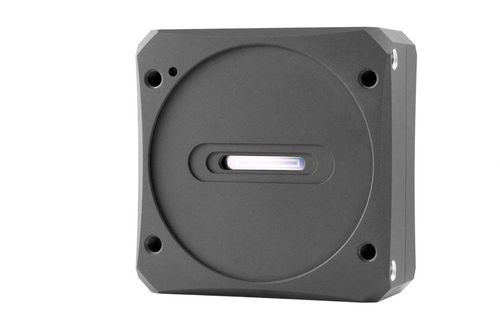

NECTA S SWIR line-scan USB3 cameras, the perfect choice to see the invisible.

NECTA S, the SWIR line-scan model in NECTA camera family, is capable of high-resolution acquisition in short-wave infrared bandwidth, ranging from 950 to 1700 nm. This new SWIR camera can reach up to 40kHz line rate with 14bit A/D converter: its high-speed USB3 interface, an advanced I/O, together with a compact and rugged aluminum case, make NECTA S suitable for most demanding machine vision applications.

Powered directly by the USB3 bus eliminating the need for external power adapters. USB 3.0 provides the most cost effective and widespread interface, pushing speed performances at the top.

Sharing the robust platform of NECTA line-scan cameras, this camera is specifically designed for those applications where infrared vision is crucial.

POWERFUL ON-BOARD IMAGE PROCESSING
NECTA S provides powerful on-board user-controlled image processing: AOI, LUT, FPN (DSNU & PRNU), gamma correction, black level offset calibration and frame control up to 65.000 lines.

VERSATILE I/O
NECTA provides a versatile I/O interface to control external devices such as strobe lights, encoders, etc. 2 input lines with direct encoder interface, 2 output lines and 1 input/output (RS422, RS644 LVDS, LVTTL). Its multipurpose I/O connector provides user I/O, line/frame triggering and direct encoder interface.
NECTA S new I/O interface now features 24VDC tolerant inputs and selectable 3,3 V / 5,0 V power supply to external device (e.g. encoder).

Parameter Name	Parameter Value
Applications	medical packaging machine
Technology	digital
Function	image processing machine vision inspection
Spectrum	SWIR
Sensor	CMOS
Interface	USB 3.0
Other characteristics	high-speed with global shutter compact line-scan robust rugged
