Swing clamp QLSWC

Swing clamp QLSWC

Swing clamp QLSWC

About

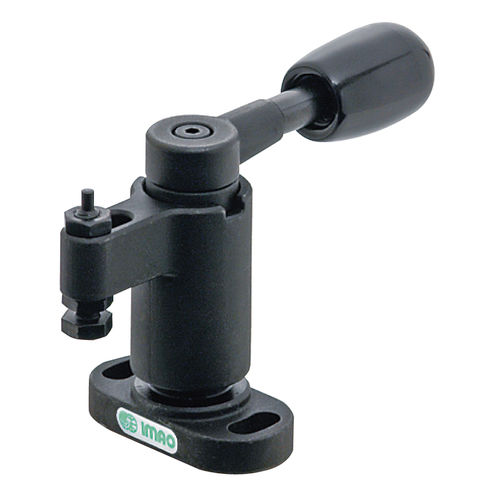

Manual swing clamp for quick workpiece setups without using tools.

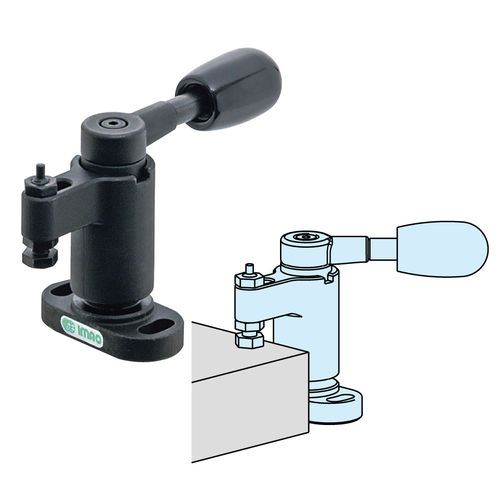

The clamp arm swings into position over the workpiece and clamps straight down just by turning the handle.
Spiral cam provides quick clamping with maximum 3500N.
Ideal for machining, assembly, and inspection fixtures.
Can clamp both rough surface and finished surface.
Handle position is adjustable every 30 degrees by dodecagonal socket in the hub.


Swing direction of clamp arm: Clockwise (Right) or Counterclockwise (Left)
Clamping force: 1100 to 3500N
Allowable operating load of knob: 100 to 300N


Materials
Body, Handle, Clamping spindle: S45C steel, quenched and tempered, Black oxide finish/ Electroless nickel plated
Arm: SCM440 steel, quenched and tempered, Black oxide finish/ Electroless nickel plated
Cam Shaft: SCM415 steel, quenched and tempered, Black oxide finish/ Electroless nickel plated
Knob: Black phenolic plastic



PARAMETERS

Parameter Name Parameter Value
Type
mechanical
Applications
  • machining
  • workpiece
Other characteristics
swing
Clamping force
Max.: 3,500 NMin.: 1,100 N
