Standard Swing Clamp
Hydraulic, max. 350 bar, Single- and double acting

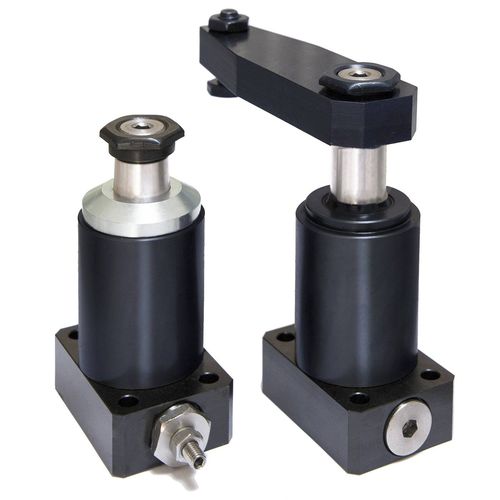

These swing clamps are offered as a superstructure version and can be operated by means of the lateral threaded connections as well as via drilled channels on the bottom side.
As Option: Metal scraper and throttling

These swing clamps are offered as superstructure version with different options.

With thread- and flange connection
Single- and double acting

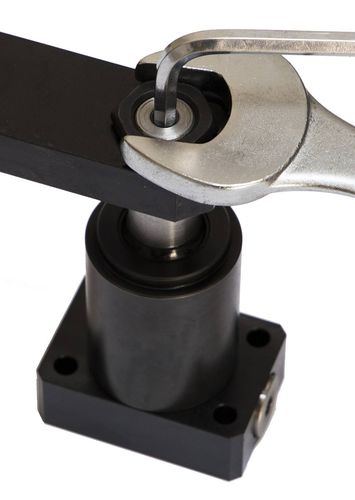

Simple installation and mounting
Mounting position independent
With optional metal scraper
With optional throttling

Description:
These swing clamps are pull cylinders in which by
pressurization on the piston rod side, the rotational
movement of the piston is generated (swing stroke).
After the pivoting movement is completed, the actual
clamping stroke is initiated. Swivel and clamping stroke
result in the total stroke.
The swing clamps are offered as a superstructure
version and can be operated by means of the lateral
threaded connections as well as via drilled channels on
the bottom side.

Parameter Name	Parameter Value
Type	hydraulic
Applications	workpiece
Other characteristics	swing double-acting vertical single-acting
Clamping force	Max.: 21.2 kNMin.: 1.8 kN
