Inosol-Swing Clamp
Hydraulic, max. 250 bar, DA

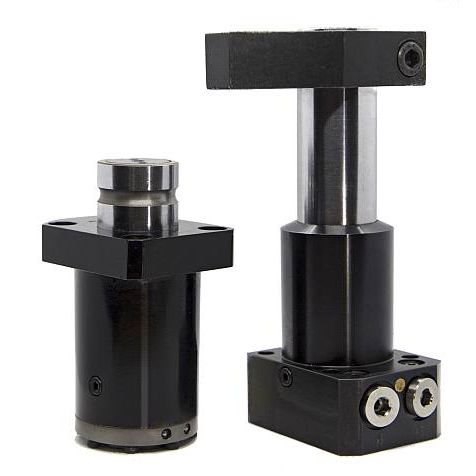

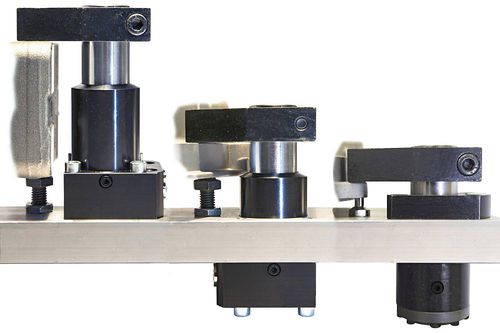

This swing clamp is available both, as a plate-mounted and substructure version and as a plug-in version as well.

- With thread- and flange connection
- Long standard stroke
- Pull rod resistant to outerdamage
- With integrated scraper edge
- Massive clamping arms possible
- Low bending of all moving parts

These swing clamps are pull cylinders in which the rotary movement of the piston is generated by applying pressure to the inside of the cylinder (swing stroke).After the swing strike (swivel movement) has been completed, the actual clamping stroke is initiated.Swivel- and clamping stroke result in the total stroke.The swing clamps are offered as plate-mounted andplug-in types and can be operated by using the sideway threaded connections as well as via drilled channels.

Parameter Name	Parameter Value
Type	hydraulic
Applications	workpiece
Other characteristics	swing
Clamping force	Max.: 17.6 kNMin.: 2.7 kN
