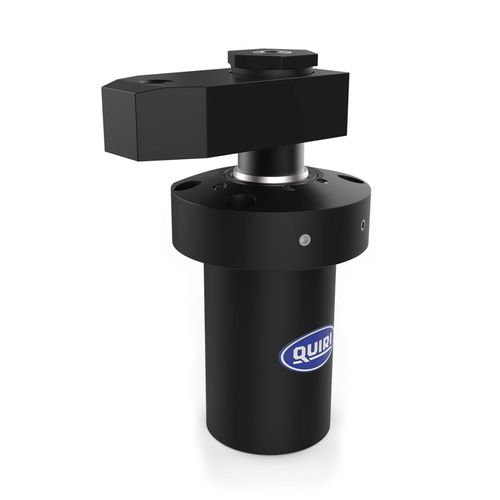

The swing clamps can clear the working area to facilitate components loading and un-loading operations. Designed for self-controled systems, they reduce non-productive time.
The swing clamp with helical rotation is an economical solution when the space dedicated to his movement allows its integration.

All parts are in high-strength steel, treated anti-seizure and anti-corrosion.
All our swing clamps include venting port.Clamping arms are removable without any tool.
All cylinders include an index on the rod.

The operating pressure from 30 to 250 bar enables a force at the clamping point between 0.2 and 24 kN.

Parameter Name	Parameter Value
Type	hydraulic
Other characteristics	swing steel
Clamping force	0.2 kN, 24 kN
