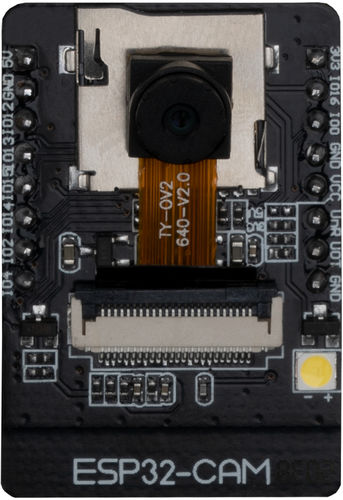

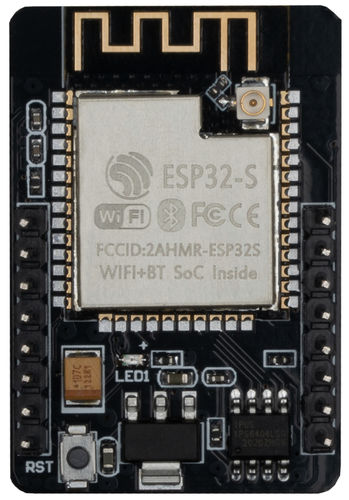

The ESP32-Cam is a compact camera module with low power consumption, multiple interfaces ( SPI / I²C / UART / PWM ) and is therefore suitable for many IoT applications and home projects ( e.g. video surveillance, QR identification and much more ). It is based on the popular ESP32, has a 2 megapixel camera with integrated LED flash and an SD card slot ( up to 4GB memory ), allowing images to be saved directly to the memory card.

Thanks to the BT radio and Wifi interface, the ESP32 camera module can communicate wirelessly, so it can be integrated into your own network (Internet access) and the images can be saved on a web server.

CAMERA
2MP OV2640

PHOTO FORMATS
JPEG, BMP, Grayscale

PROCESSOR
Dual Core-ESP32 160 MHz

BESONDERHEITEN
Bright Flash-LED, integrated antenna

INTERFACES
UART, SPI, I2C, PWM, Wi-Fi, BT-wireless connection

SD-CARD SLOT
Up to 4 GB

SPI FLASH
32 Mbit

RAM
52KB SRAM + 4MB PSRAM

SUPPLY VOLTAGE
5 V

OPERATING TEMPERATURE
-20°C ~ 85°C

UART STANDARD BAUDRATE
115200 bps

POWER CONSUMPTION
6mA in deep sleep; 180 mA without flash; 310 mA with flash at max. brightness

SECURITY
WPA, WPA2, WPA2-Enterprise, WPS

DIMENSIONS
27 x 40,5 x 4,5 mm

ITEMS SHIPPED
Camera module, camera

Parameter Name	Parameter Value
Function	surveillance
Other characteristics	megapixel compact
