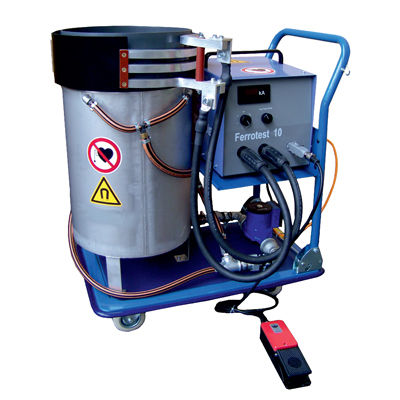

Mobile Crack Detection Unit

The total loading capacity of a chain is the result of the resistance power of each particular link. Therefore, to ensure safe usage and avoid accidents, it is important to periodically check the chain links for surface cracks using magnetic particle inspection. The compact design of our mobile chain inspection system is ideal for use on-site.

FEATURES
• High-current cables
• Foot switch to control the inspection current
• Fixed on a moveable trolley
• Two lockable guide sand two fixed rollers
• Closed magnetizsng coil Ø 350 mm (working height of the coil approx. 840 mm)
• Test liquid drip tray with test liquid pump (contents approx. 5 l)
• Test liquid pump complies with IP 64
• Spraying device including valve for regulation
• Multiple socket (switchable) for UV light and pump (connecting cable 1.5 m, mains supply
230 V/50 Hz)
• Drip tray with coil - easy to disassemble and usable as a stationary system

Parameter Name	Parameter Value
Applications	surface particle
Sector	industrial
Other characteristics	automated
