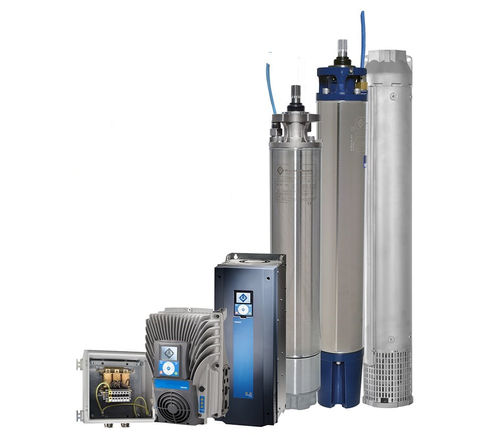

System package with energy savings up to 15 % including:
■ 6" encapsulated synchronous 304SS submersible NEMA motor
■ Variable frequency drive
■ Matching output filter

■ SUPERIOR EFFICIENCY
○ Up to 15 % improved motor efficiency (system up to 11 %) with excellent partial load behaviour (SKU reduction)*
○ Due to the high motor efficiency, amps are significantly reduced, which might lead to smaller drop lead cross size and thus cost saving
○ One-stop shop and perfectly matching components guarantee first-class performance/efficiency
○ Power factor corrected input (No power compensation needed)
○ Significant lower motor heat rise (Increased lifetime)

■ EASY INSTALLATION
○ Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software

■ INCREASED LIFETIME
○ Incorporated Soft start and protection features (no additonal investment)
○ Speed control (Optimum aggregate operation - pump matches system any time)

■ CONNECTIVITY
○ Communication ModBus (RS485 and Ethernet)

■ FULLY SUPPORTED
○ Fully technical support
○ Professionals and Field Service Engineers

■ System Power Supply: 380 - 400 / 460 V ± 10 %
■ System Supply Frequency: 50/60 Hz ± 6 %
■ Motors installation orientation: Vertical / horizontal (shaft end heightened)
■ Protection:
○ motor: IP68, insulation class F
○ drive: IP66/54/21
○ filter: IP54/00

Parameter Name	Parameter Value
AC/DC	3-phase
Type	synchronous
Protection class	IP54 IP66 IP21
Configuration	vertical
Applications	for industrial applications for the mining industry agricultural
Other characteristics	high-efficiency NEMA submersible variable-frequency RS-485 with speed controller
Power (W)	4000 - 45000
Torque (Nm)	12.7 - 143.2
Rotational speed (rpm)	3000 - 3000
