Strain wave gearbox ReBeL®

About

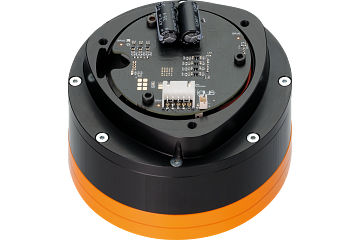

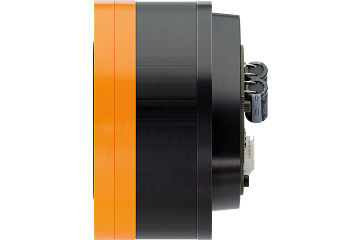

Fully integrated individual gearbox with motor, control system and encoder

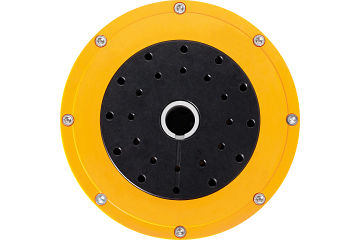

output with encoder and mounting flange
Brushless DC motor (external rotor)

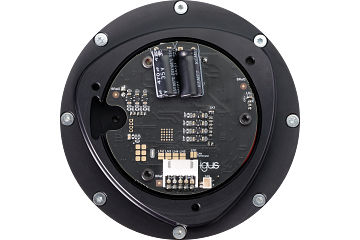

CAN-BUS motor driver board
25% lighter than conventional strain wave gears due to igus® high-performance polymers


The product name ReBeL® stands for "Robotic embedded- BLDC & electronics link". Thanks to the fully integrated ReBeL® plastic corrugated gears, an individual robot can be designed with the help of connecting elements. The ReBeL® gearbox can be used along the last axis of an articulated arm, linear robot or delta robot - in front of various gripper systems, for example. The modular cobot gearbox system with fully integrated gearboxes helps implement a wide variety of cobot concepts quickly.

Control system
The ReBel® individual gears have an integrated control. An additional controller is therefore not necessary. You only need a CAN master to give the transmission the driving commands. With the plug & play solution, the user does not have to worry about the power electronics.



PARAMETERS

Parameter Name Parameter Value
Type
strain wave
Shaft orientation
coaxial
Torque (Nm)
10 - 20
Shaft configuration
solid-shaft
Performance
high-performance
Other characteristics
modular
Backlash (°)
0.4 - 0.4
