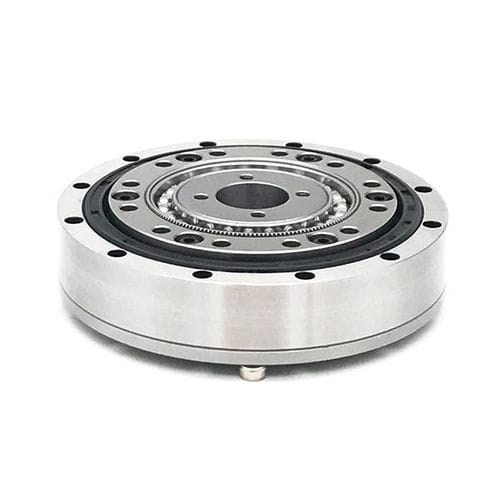

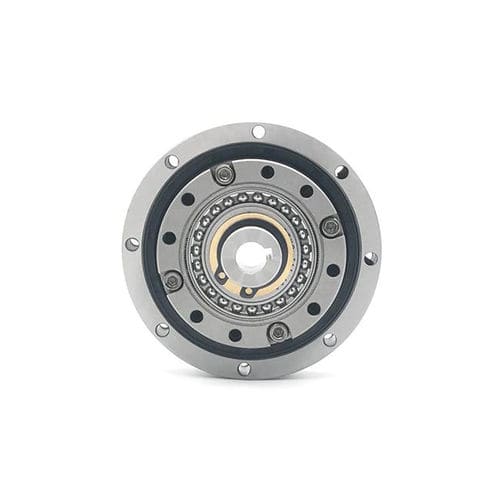

Harmonic Drive

As a professional Harmonic Drive manufacturer, GIGAGER harmonic gearbox is widely used in robot joints with features of compact design, light weight, high torque, good quality with competitive price. GIGAGER supplies a full size range of high cost performance harmonic reducers that matches the Japanese and American harmonic drive gearboxes. They are the perfect alternative harmonic speed reducers for your limited budget.



1. What is the Harmonic Drive Reducer?

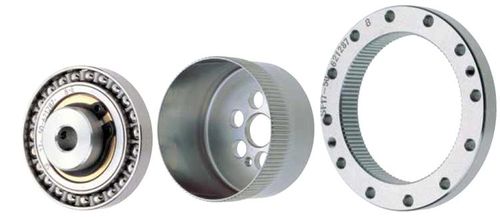

Harmonic gear transmission was invented by the American inventor C.W.Musser in 1955. It is a new type of transmission that utilizes the elastic deformation of the flexible working member into the motion or power transmission. It breaks through the mechanical transmission using rigid members. The mechanism's model uses a flexible member to achieve mechanical transmission, resulting in a range of special features that are difficult to achieve with other transmissions. The deformation process of the intermediate flexible member is basically a symmetrical harmonic. In addition to the former Soviet Union referred to this type of transmission as wave drive or flexible wheel drive, the United States, Britain, Germany, Japan and other countries are called Harmonic Transmission.

Parameter Name	Parameter Value
Type	strain wave
Shaft orientation	coaxial
Torque (Nm)	1 - 5 5 - 10
Shaft configuration	hollow-shaft
Applications	transmission
Other characteristics	compact mechanical transmission
Rotational speed (rpm)	3500 - 3500
