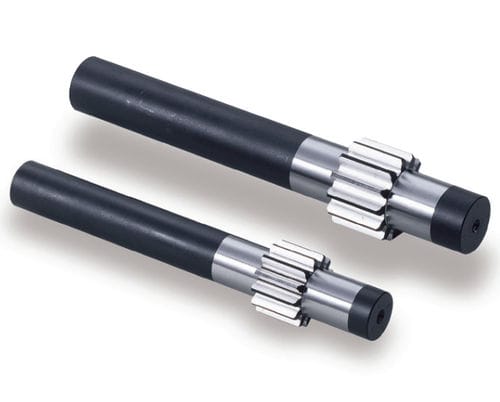

Module 2, 13 Tooth Ground Steel Pinion Shaft
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$88.79$84.97$81.18$77.42Request For Quote
Lead Time2 wks2 wks2 wks3 wks

Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)

MaterialHardened Carbon Steel
Quality ClassCommercial
No. Of Teeth13
Stem Length ( Left)30.00 mm
Stem Length ( Right)120.00 mm
Pitch Dia.26.00 mm
Stem Dia.20.20 mm
Face Width20.00
Module ( Pitch )2.000
Pressure Angle20.0 °

Parameter Name	Parameter Value
Teeth	straight-toothed
Other characteristics	carbon steel
Diameter (mm)	20 - 26
