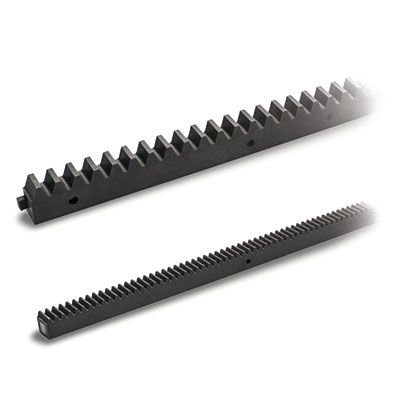

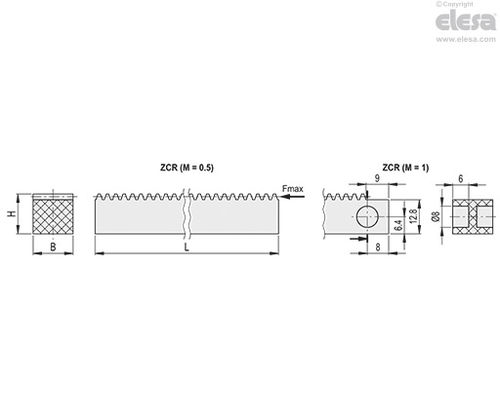

Straight-toothed rack and pinion ZCR

Straight-toothed rack and pinion ZCR

Straight-toothed rack and pinion ZCR

About


MATERIAL
Glass-fibre reinforced polyamide-based (PA) technopolymer, grey colour.

STANDARD EXECUTIONS
- ZCR: square section racks.
- ZCR-A: square section racks with steel core.
- ZCR-PL: racks with mounting bracket for mounting on a plane
parallel to teeth.
- ZCR-PD: racks with mounting bracket for mounting on a plane
perpendicular to teeth.
- ZCR-T: “T” shape racks.

FEATURES
The loads reported in the tables indicate the maximum load that can be
applied on a single tooth.
The alignment between two or more racks is granted only for the
execution ZCR-A with module 1.0 – 1.5 – 2.0 – 4.0.

TECHNICAL DATA
See: Transmission elements.

SPECIAL EXECUTIONS ON REQUEST
Special lengths on request. On special lengths the meshing is not
granted in case of alignment.



PARAMETERS

Parameter Name Parameter Value
Teeth
straight-toothed
Other characteristics
  • for industrial applications
  • steel
