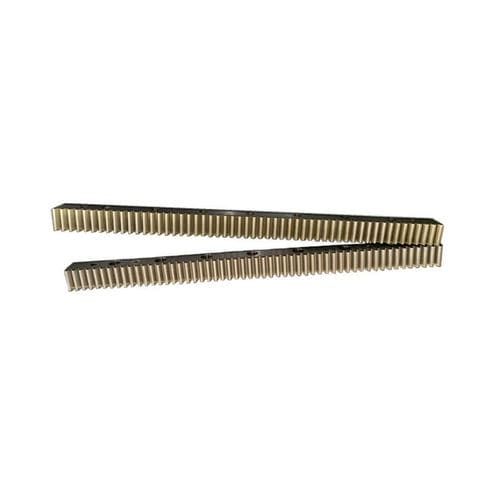

Spur Tooth Rack
Pt.CP = Transverse/tooth
M = Module
Z = Number of teeth
Quality = 6h23
Material = C45K DIN 1.0503
Profile = all faces ground
Teeth = Hardened and ground/pressure angle a = 20°。
Cumulative pitch error GTf : 0.027 / 300 mm
Adjacent pitch error fp(mm) : Module ≦ 3 ; 0.006﹐ Module > 3 ; 0.008
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Teeth |
straight-toothed
|
| Other characteristics |
|
| Length (mm) |
500 - 1017.9
|
