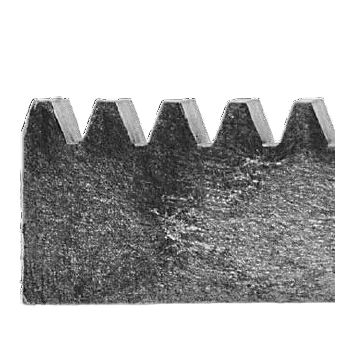

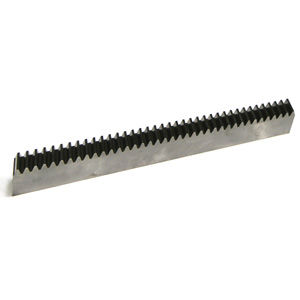

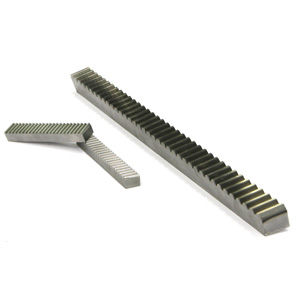

RACKS
Precision masterpieces: Racks produced by Zanatta.
Discover new frontiers in terms of precision and efficiency, and choose Zanatta for racks: whether for gates or industrial use. We combine proven experience and sophisticated technology to offer the best solution for all customer requirements. Zanatta produces racks which range from Quality 10 to Quality 6 on the precision scale. The metals we use include simple steel, alloy steel and stainless steel. To improve durability we employ heat treatments, always in line with the type of application and the material used. Our racks for industrial use range from module 0.5 to module 30 on a square or flat section with straight or helical gear teeth, and up to 6 metres in length. The company is equipped with cutting-edge machinery, such as CNC gear-cutting systems. We can straighten existing racks by means of a CNC straightening machine, which allows us to achieve rectilinear tolerance levels of up to 0.1 mm/m. We can also execute CNC milling and boring up to L=4000, grinding of surfaces, and CNC grinding of gear teeth to Quality 6. In addition, we offer the possibility of die-casting plastics. The company makes use of a 3-D measuring machine for measurement control, helping to ensure the high quality of our racks. We can also make samples. The flexibility of our working structure allows us to create either single pieces or large quantities, with very prompt delivery times. Zanatta creates racks for sliding gates and for machinery in general. The company produces articles both to design and from the catalogue.

Parameter Name	Parameter Value
Teeth	straight-toothed, helical
Other characteristics	precision
Length (mm)	480 - 3015
