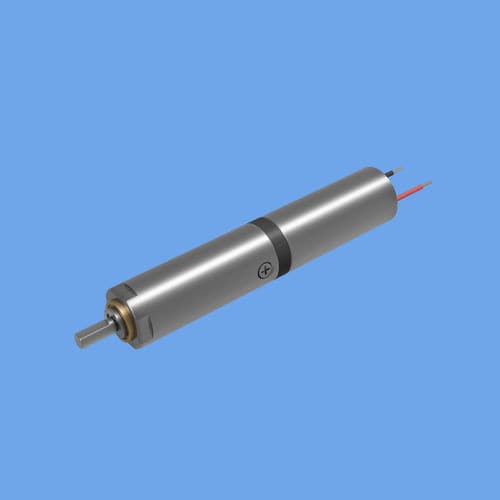

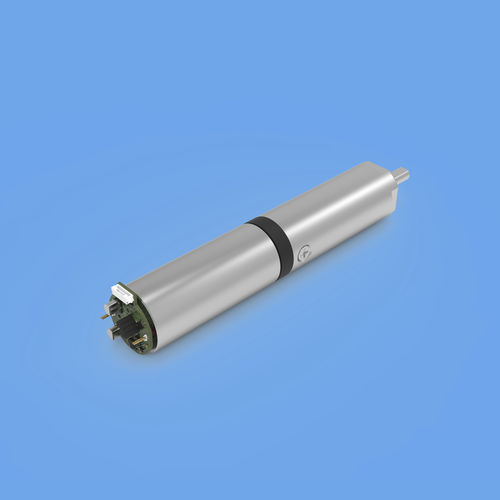

Model: ZWBMD006006-XXX
1. Rated Voltage: 3-24 V
2. No Load Speed: 11-3824 rpm
3. No Load Current: 30-40 mA
4. Rated Load Speed: 10-3229 rpm
5. Rated Load Current: 100 mA

Motor specifications:
Motors(Optional) - Coreless motor， Stepper motor
Voltage(Optional) - 3-12V
Input speed - ≤30000rpm
Current - 100MA max

Gearbox stages: - 1 - 2 - 3 - 4
Reduction Ratio - 5/6 - 23/31/41 - 110/148/198/266 - 531/711/952/1275/1708
Rated Torque (gf.cm） 330 - 330 - 330 - 600
Instant Torque（gf.cm）800 - 800 - 800 - 1500
Gearbox efficiency - 87 - 74 - 63 - 56
Length - 9.7 - 12.1 - 14.5 - 16.9

Areas Of Expertise
Automotive industry
Electric motors by ZHAOWEI are efficient, compact, rugged, and extremely dynamic. The low costs of brushless flat motors make them particularly well suited for applications in the automotive industry.

Communications
DC motors by us are precise, robust and efficient. They are free of magnetic cogging torque and, as a result, are ideal for communication applications.

Smart Home
With the perfection of the 5G network system, For many years, ZHAOWEI has been dedicated to providing innovative solutions for the Home automation market, enabling intelligent home to serve our lives and hoping to create a healthier and simpler life for customers through our efforts.

Parameter Name	Parameter Value
Type	stepper
Configuration	coreless small
Rotational speed (rpm)	10 - 3824
