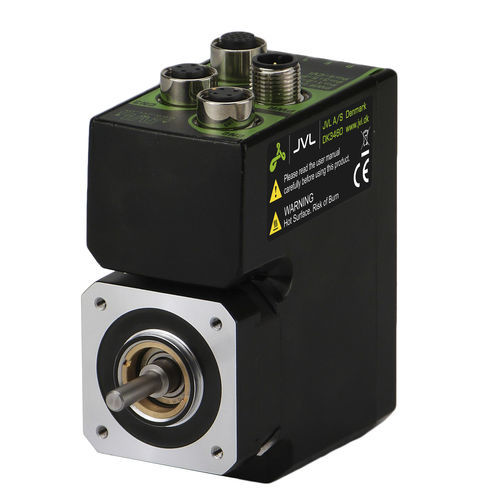

MIS171-MIS176 ServoStep - NEMA17 Programmable Integrated ServoStep Motors with Closed-Loop, Ethernet, multiturn encoder

The Integrated ServoStep Motors from JVL.
All in one smartmotor with integrated controller. A wealth of possibilities with this new NEMA17 stepper with closed-loop servo-operation up to 3000RPM, It offers the highest microstepping resolution, position/velocity/torque servo-performance up to 0.8Nm.

• MIS171 - 0.36Nm
• MIS173 - 0.56Nm
• MIS176 - 0.80Nm

Available with CANbus, RS485, SSI, Industrial Ethernet Profinet, Ethercat, Ethernet/IP, Powerlink, Ethernet TCP, Sercos III , Absolute multiturn encoder, PLC 8IOA, clock/direction and STO.
Velocity resolution 0,01RPM for extreme low speed operation and 409600 step/rev for highest precision. Different shaft diameter, brakes and high IP protection make it ideal for machine adjustment or other demanding applications.

• Closed-Loop Operation
• Real Torque Control Mode
• PLC build in
• Absolute Encoder

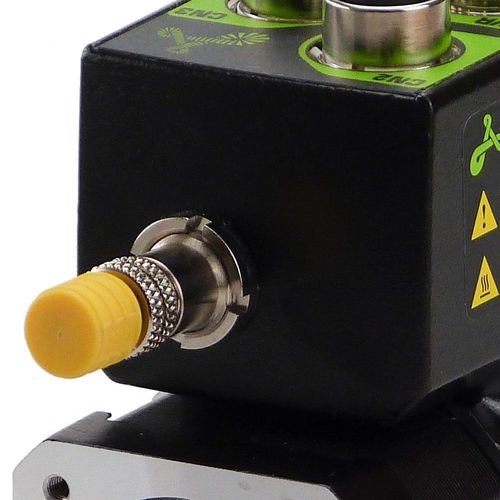

• Top or rear end M12 or M23 connector
• 409600 step/rev
• High Resolution Encoder
• Operation Control Modes

Optional:
• STO connector
• Double Shaft & Rear brake
• CANopen
• Industrial Ethernet
• Wifi/BT, Wireless Ethernet

Parameter Name	Parameter Value
AC/DC	DC
Type	stepper
Protection class	IP65
Configuration	hollow-shaft with integrated driver and coder NEMA 17
Cooling mechanism	air-cooled
Applications	for conveyors industrial for Venetian blinds with built-in encoder for robotics conveyor for rotary tables packaging machine for the automotive industry for the electronics industry agricultural for agribusiness for medical applications for the pharmaceutical industry for frequent stop/start applications for table height adjustment for dispensers
Other characteristics	low-speed high-efficiency high-torque high-power RS-232 high-speed precision motion control high-precision with integrated controller with built-in electronics RS-485 programmable high-resolution variable-torque closed-loop energy-saving emergency variable-speed CANopen EtherCAT
Power (W)	92 - 92 134 - 134 142 - 142
Torque (Nm)	0.36 - 0.36 0.56 - 0.56 0.8 - 0.8
