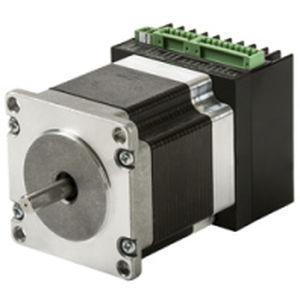

NEMA34 Closed Loop Stepper Motors

Advantages：

●Sophisticated closed loop control enhances motor performance with no step loss
●Operates in torque, velocity, and position modes
●Efficient torque utilization optimizes motor sizing
●Integrated design minimizes component and wiring requirements
●Reduced space, installation efforts and system cost
●Fieldbus: CANopen, EtherCAT
●Synchronized control of coordinated motion profiles
●Reduced machine complexity, as stepIM can function as distributed I/O points
●Up to IP65 protection class
●Maintenance free
●CE compliance

NEMA34 Closed-Loop Stepper Motors:
1.IP Catings:IP20/IP65;
2.Communication:CANopen/EtherCAT;
3.Input voltage:14-48/14-75(VDC);
4.I/Os:Digital (IP20): 4 x Input, 2 x output
Digital (IP65): 3 x Input, 1 x output
Analog 1 x Differential Input
5.Motor feedback:12 bit absolute encoder
6.Frame size:56.4mm

Parameter Name	Parameter Value
Type	stepper
Protection class	IP65 IP20 maintenance-free
Configuration	NEMA 34
Other characteristics	CANopen EtherCAT closed-loop
Torque (Nm)	3.5 - 3.5 5 - 5 5.5 - 5.5 7.7 - 7.7
