Pulse and direction Driver for motor mounting

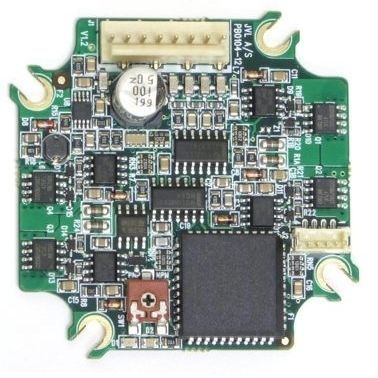

Step Motor Driver SMD74 is a miniature driver that measures only 52.4x52.4 mm and is ideal for direct mounting onto a step motor or in a cabinet. It’s can also be used in JVL MIS23x integrated steppermotors and MIL23x linear integrated stepper motors. SMD74 are new and improved version compared to SMD73 that it can replace 100%. Additional features compared to SMD73 are supply voltage up to 48VDC for higher speed and also more efficient driver so it can work up to 85’C degree. Also a 4 pin connector with error output and enable input available. It will work with almost any type of high-torque stepper motors and can be mounted on a plane surface.

• OEM low-price driver for Stepper Motors
• Dimensions only 52.4x52.4x14mm
• Single power supply from 18-48VDC
• Ultra high efficient driver for up to 85’C degree operation.
• LED indicators for error and power on
• 200, 400, 800,1000 or 1600 steps/rev. to order
• Motor current 0,1 to 3.0 Amp RMS to order
• NPN/PNP and 5V inputs can be changed with switch.
• Can be mounted on a surface or directly on NEMA23/34 High Torque motors
• Motor control via step-pulse and direction signals
• Can handle up to 50ksteps/sec.
• Also available as DC driver, up to 4A RMS
• Protected against thermal overload, current overload, short-circuit
• Many cables can be delivered with Molex or M12 connector for easy adaption to own cabinet.
• Can be coated with for environment with eg condensation water.

Parameter Name	Parameter Value
Motor type	stepper
Other characteristics	integrated
