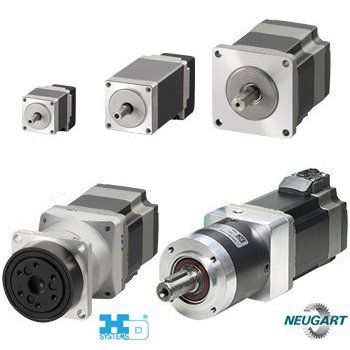

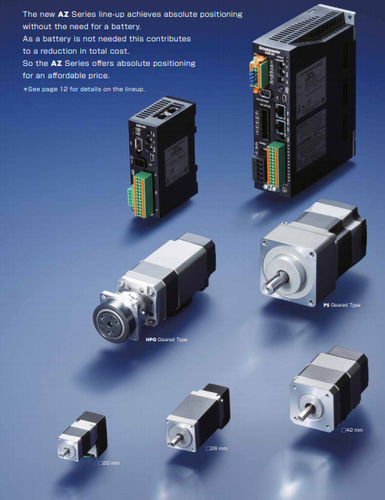

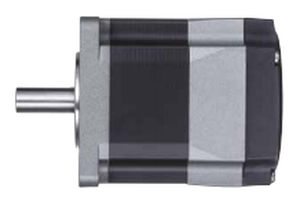

The AlphaStep AZ Series stepper motors offer high efficiency, low vibration and incorporates our newly developed Mechanical Absolute Encoder for absolute-type positioning without battery back-up or external sensors to buy. Closed loop performance without hunting or gain tuning. Available with a built-in controller or pulse input driver which substantially reduces heat generation from the motor through the use of high-efficiency technology. Requires AlphaStep AZ Series Stepper Motor Driver.

• Battery-Free, Mechanical Absolute Encoder
• Closed Loop Performance, No Hunting or Gain Tuning
• AC or DC Input Types
• Parallel Shaft and Right Angle Geared Types for Higher Torque, Space Savings
• Electromagnetic Brake Type Available
• AlphaStep AZ Series Stepper Motor Driver Required*

Parameter Name	Parameter Value
AC/DC	AC
Type	stepper
Voltage (V)	24 - 48
Protection class	IP66 EMC
Configuration	with brake NEMA 17 NEMA 34 NEMA 24
Other characteristics	low-voltage high-efficiency UL certified with integrated controller closed-loop
Intensity (A)	1 - 6.4
Torque (Nm)	0.3 - 110
Rotational speed (rpm)	0 - 833
Diameter (mm)	1.65 - 2.36
Operating temperature (°C)	0 - 40
