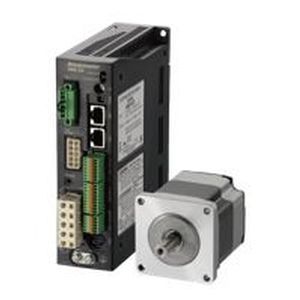

The AlphaStep AR Series stepper motors offer high efficiency, low vibration, continuous operation with the security of closed loop performance without hunting or gain tuning. Available with a built-in controller or pulse input driver, the system substantially reduces heat generation from the stepper motor through the use of high-efficiency technology. The AlphaStep AR Series also achieves up to 40% less power consumption, improved angle accuracy and is capable of driving large inertia loads. For use with AlphaStep AR Series Drivers.

• High-Efficiency, Continuous Operation Stepper Motors
• Closed Loop Performance, No Hunting or Gain Tuning
• AC or DC Input Types
• Parallel Shaft and Right Angle Geared Types for Higher Torque, Space Savings
• Electromagnetic Brake Types
• AlphaStep AR Series Stepper Motor Driver Required*

Parameter Name	Parameter Value
AC/DC	AC
Type	stepper
Voltage (V)	24 - 48
Protection class	IP65 EMC
Configuration	with brake NEMA 17 NEMA 34 NEMA 24
Other characteristics	low-voltage high-efficiency high-torque low-vibration UL certified RS-485 closed-loop
Intensity (A)	1 - 6.1
Torque (Nm)	0.3 - 37
Rotational speed (rpm)	0 - 600
Operating temperature (°C)	-10 - 50
