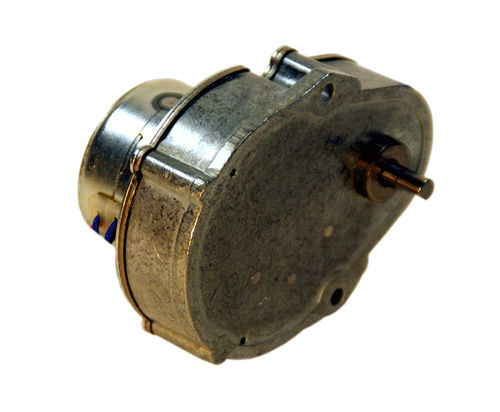

Frame Size: 35mm
Max Torque: 150 oz-in [1059 mN-m]
Step Angle: 7.5°
Position Accuracy: +/- 5% max.
Number of Phases: 4 phase bifilar
Insulation Class: Class A (105°C)
Insulation Resistance: 100 MΩ at 500Vdc
Dielectric Strength: 600 Vac/second
Lead Wire: 6 leads 28AWG (approx. 9 inches [228.6 mm])
Temperature Rise: 60°C max
Gear Housing: Die cast housing with hardened steel gears
Note: Typical data subject to change without notification

Parameter Name	Parameter Value
Motor type	stepper permanent magnet
Type	spur
Shaft orientation	parallel-shaft
Power (W)	0 - 10
Voltage (V)	24 - 12
Torque (Nm)	1 - 5 0.5 - 1 0.2 - 0.5 0.1 - 0.2 0 - 0.1
Other characteristics	permanent magnet
Gear ratio (unit)	2 - 300
Operating temperature (°C)	-10 - 40
