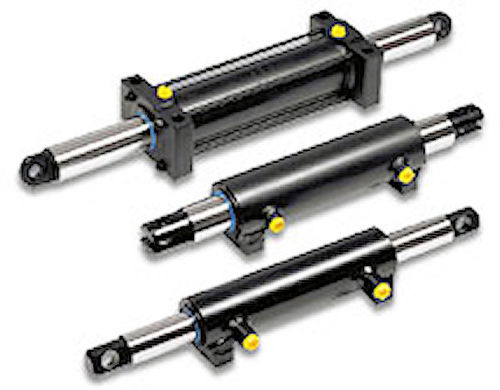

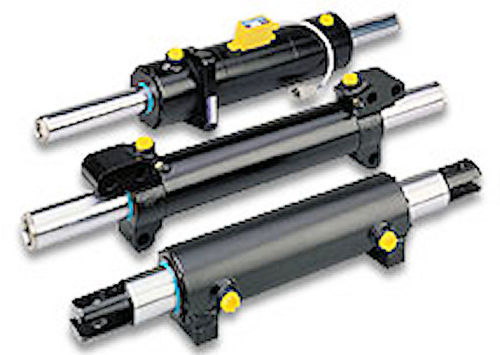

Among the hydraulic actuators of our production there is the DEK-FORKLIFE Series, a range of fork steering cylinders for agricultural vehicles, earth moving vehicles and forklifts.
The hydraulic actuators automate the entire driving process, by minimizing the human interaction with the machine. The hydraulic cylinders supply controlled energy to the driving system, so that the driver can turn the steering wheels through a minimal effort in medium speed conditions. This effort is considerably reduced even when the vehicle is moving slowly or is stationary. The hydraulic power of the actuator ease the mechanical operation of the machine, giving an optimal output in terms of linear, oscillatory or rotary movement.

DEK-FORKLIFT series hydraulic actuators: features

The DEK-FORKLIFT Series of hydraulic fork steering cylinders are designed for the agricultural and construction vehicles: tractors, earthmoving vehicles, backhoe loaders, dump trucks, wheel loaders, graders, municipal vehicles, forklifts.
Here are the main features:
Hardened stem
Rod guide systems in treated metal or with applied rings
Stainless steel rod
ASTM B117 96h corrosion resistant chrome surface
Hardened or chromed stems
K-BOND piston group
Monolithic stems or friction welding
Auto-Venting System
Application: steering axles or articulated vehicles
Designed to position sensors

Parameter Name	Parameter Value
Movement	rotary
Type	hydraulic
Technology	piston with through rod
Configuration	double-acting
Material	stainless steel
Applications	for construction equipment for agricultural machinery for vehicles for forklift trucks steering
Stroke (mm)	0 - 300
Pressure	120 bar (1,740.5 psi)
Bore	Max.: 75 mm (2.95 in)Min.: 40 mm (1.57 in)
Fluid temperature	Max.: 120 °C (248 °F)Min.: -30 °C (-22 °F)
