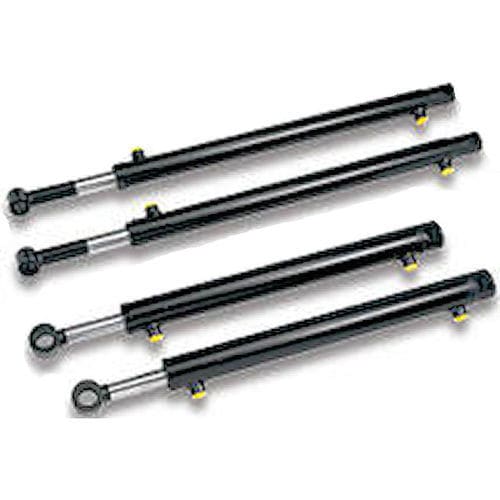

The hydraulic actuators of the DE Series are designed for agricultural vehicles, earth moving vehicles and forklifts

We manufacture double acting balanced hydraulic lifting cylinders with front hitch. Ideal for agricultural vehicles, earthmoving and forklifts.

The hydraulic actuators automate the entire driving process, by minimizing the human interaction with the machine. The hydraulic cylinders supply controlled energy to the driving system, so that the driver can turn the steering wheels through a minimal effort in medium speed conditions. This effort is considerably reduced even when the vehicle is moving slowly or is stationary. The hydraulic power of the actuator ease the mechanical operation of the machine, giving an optimal output in terms of linear, oscillatory or rotary movement.

Front hitch lifting hydraulic cylinder DE Series: main features

Electro-upset stem or from chromed bar friction welded
Rod guide systems in treated metal or with applied rings
Cold extruded barrel
ASTM B117 96h corrosion resistant chrome surface
Hardened monolithic stem
Auto-Venting System
Low friction seals
Low friction guides
Designed to position sensors

Parameter Name	Parameter Value
Movement	rotary
Type	hydraulic
Technology	with piston rod
Configuration	double-acting
Applications	for lifting applications for construction equipment for vehicles for forklift trucks steering
Other characteristics	standard high load capacity corrosion-resistant
Stroke (mm)	0 - 140
Pressure	200 bar (2,900.8 psi)
Rod diameter	60 mm, 70 mm, 92 mm (2 in)
Bore	50 mm, 60 mm, 80 mm (1.97 in)
Fluid temperature	Max.: 90 °C (194 °F)Min.: -30 °C (-22 °F)
