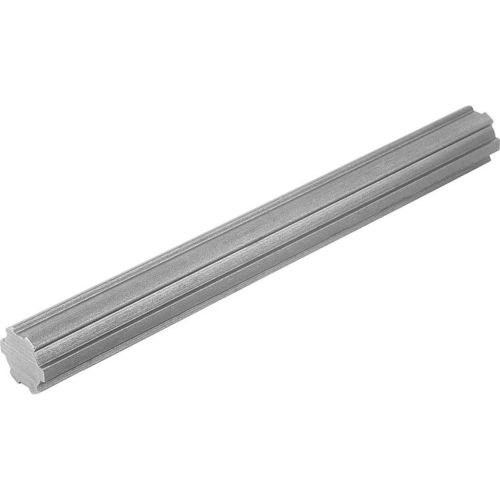

Splined shafts similar to DIN ISO 14

Material:
C45 steel or 1.4301 stainless steel.

Version:
Cold-drawn, bright.

Note:
Spline shafts based on DIN ISO 14 with straight parallel flanks. A spline shaft with spline hub is used to transmit high torques while enabling simultaneous axial movement. The spline shafts are cold-drawn. Cold drawing does not interrupt the grain flow of the base material, ensuring spline shafts of very high strength.

Tolerances:
Straightness 0.8 mm/m.
Torsion max. 0.5 mm/m.

On request:
Other lengths.

Parameter Name	Parameter Value
Material	steel, inox
Type	splined
Product applications	transmission
Diameter (mm)	14 - 54
Length (mm)	1000 - 1000
