Welding Line-Inspecting Device
Reasonable structure
Stable performance
Easy maintenance
Energy-efficiency

Product details

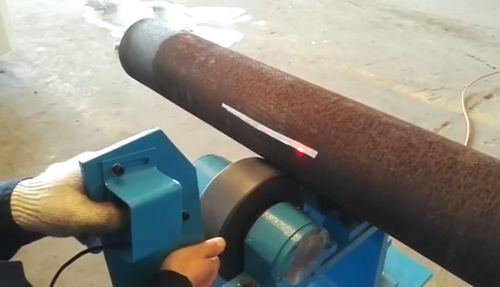

Welding line-inspecting device is used to position the welding line of the pipe. It will be installed in the machine body of the hydro-tester. When the pipe comes into hydro-tester, welding line-inspecting device will rotate the pipe to position the welding line, and the welding line will be positioned among the fan-shaped area from 11:00am to 1:00pm; then the hydro-tester will close the clamps and carry out the pressure testing.


Welding line-inspecting device mainly includes：
1、Driving roller device: one set (equipped electric motor)
2、Driven roller device: two sets (no electric motor)

Parameters：
1、 Motor: 0.75kW
2、 Output revolutions: 12r/min(50HZ), frequency control

Parameter Name	Parameter Value
Applications	steel pipe
Options	electric
