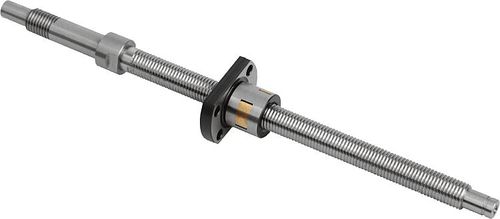

Miniature ball screw linear actuators ground, with flange nut

Material:
Spindle steel 1.1213.
Nut steel 1.3505.

Version:
Spindle and nut ground, induction hardened to 62 ±2 HRC and polished.

Note:
Miniature ball screw linear actuators with machined shaft ends and flange nuts. Supplied with oil coating. Re-lubrication is recommended.

Produced acc. to precision class C5. Without preloading with backlash (max. 0.008 mm).

Precision spindles for use in optics, the food industry, automation, medical technology, the defence industry, aeronautics and precision tool technology.

Attention:
The flange nut must not be removed from the spindle, otherwise the balls fall out.

Parameter Name	Parameter Value
Material	steel
Performance	precision
Other characteristics	miniature
