About
Material:
Spindle, steel 11213;
nut, steel 1.3505;
deflector, plastic
Surface finish:
Spindle, rolled, inductively hardened to 62 ±2 HRC and polished;
nut, ground, track inductively hardened to 62 ±2 HRC and polished
Note:

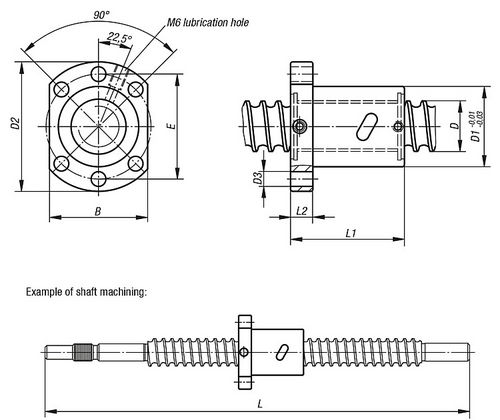

Ball-type linear drive with gothic pointed arch profile with 5 mm or 10 mm pitch.
Single-start, ascending to the right. Ball screw-flange nut according to DIN 69051 Part
5 with flange.
Manufactured according to accuracy class C7 (tolerance ±50 u / 300 mm). Without
pre-stressing, with axial play P0 (max. 0.08 mm)
On request:
We manufacture ball screws at your request on the basis of a detailed design.
Max. production lengths 5600 mm.
Other accuracy classes and pre-stressings available (see Technical Information).
Attention:
The flange nut must not be removed without assembly aid of the spindle, otherwise
the balls fall out.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Material |
steel
|
| Type |
rolled
|
| Diameter (mm) |
16 - 32
|
