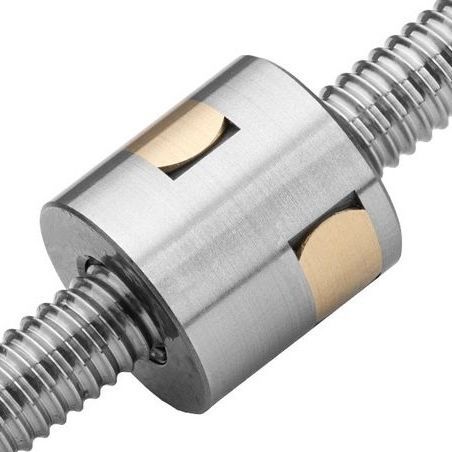

Cylindrical nut with 4-point contact and single-gear reversal
Miniature ball screws are mainly used in semiconductor technology, optics, medical technology and measurement technology. There are two different screw shapes, Forma A and Form B, which are also available in different lengths. In addition to the ground version up to accuracy class P5, you will also find the rolled version in accuracy classes T5 to T10 from 8 mm diameter.
Our range of miniature ball screws consists of two spindle series which can be combined with a total of six different
nuts can be combined. Various diameters and pitches as well as several accuracy classes are available.
available.

Description
- Ideal for high-precision applications in biotechnology, medical technology and metrology
- Without wiper
- Outer geometry of the nut designed for installation in a housing
- Spindle thread single thread ground according to class P1-P5

Optional:
- Miniature ball screws also available with axial clearance
- Customized material selection, lubrication and coating
- Nominal diameter: 3 - 16 mm
- Lead: 0.5 - 5 mm
- Stroke: 20 - 800 mm

In addition to the standard spindle shafts, you can obtain shortened or completely different special designs from us.
from us. These special spindle shafts can again be combined with the standard nuts shown here, or with other
different designs.

Please ask us about the possibilities with optiSLITE for your application. We will be pleased to submit
an offer. For a price and delivery time information already a sketch is sufficient.

Parameter Name	Parameter Value
Material	steel
Performance	high-precision high-efficiency zero-backlash low-noise high-power
Type	ground
Other characteristics	compact with back nut miniature with trunnion
Diameter (mm)	3 - 16
Load rating	Max.: 12 kNMin.: 0.09 kN
