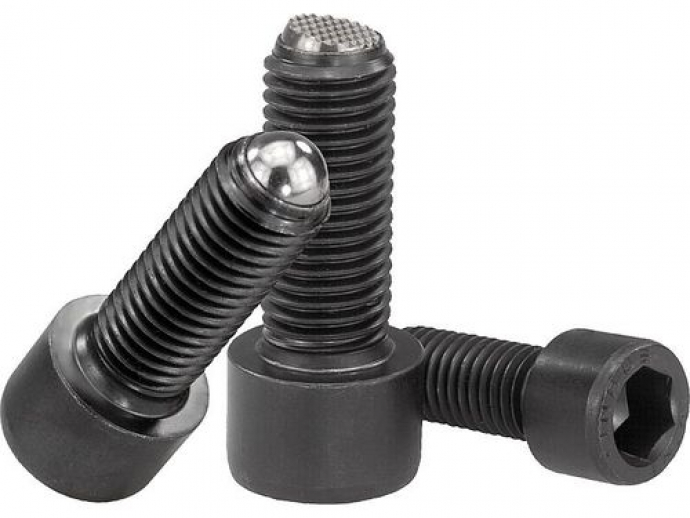

Ball-end thrust screws with head

Material:
Screw carbon steel.
Ball ball-bearing steel.

Version:
Screw, grade 10.9, black.
Ball hardened, bright.

Note:
Form A with full ball is used when a clean, polished contact surface is required. Surfaces which are not flat and parallel can be firmly clamped or supported with Form B with flattened ball, the movable ball can adapt itself up to 9°.

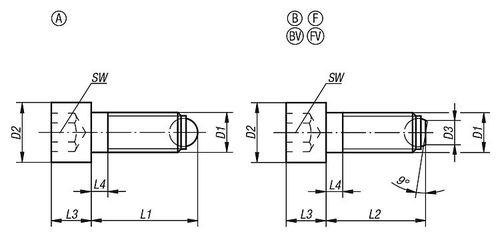

Drawing reference:
Form A: full ball
Form B: flattened ball
Form BV: flattened ball non-rotating
Form F: flattened ball diamond grip

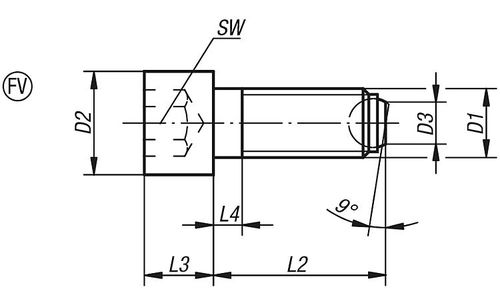

Form FV: flattened ball diamond grip non-rotating

Parameter Name	Parameter Value
Material	steel
Performance	precision
Type	rolled
