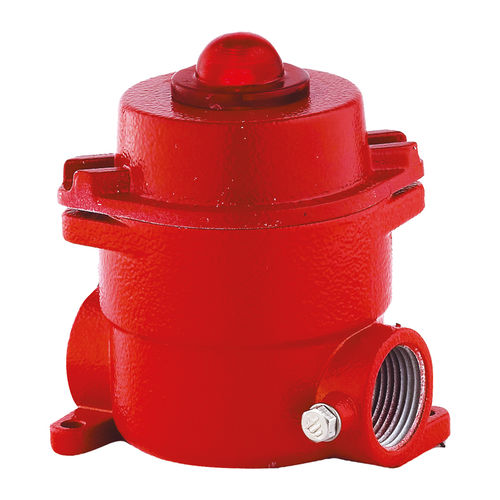

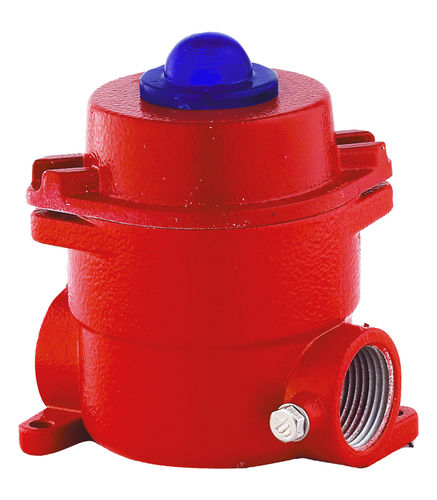

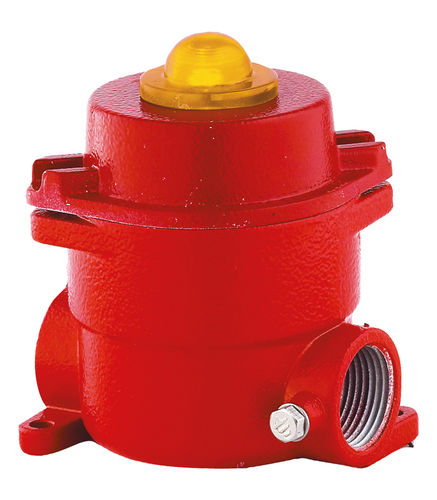

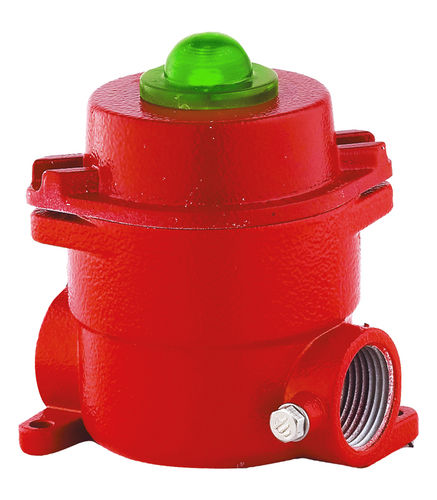

EX 045 LD PAG SP: Explosion proof pilot light, ideal for signaling the correct functioning of alarm/warning systems installed in explosive atmospheres.
Switches and pilot lights designed according to ATEx regulations, can be used in Group II explosive areas, Zones 1, 2, 21, 22.

II 2GD Ex de IIC T6 Ex tD A21 IP66 T85 °C
• Approval CESI 05 ATEX 062
• Housing in copper-free aluminium alloy
• Polyester paint RAL 3020
• Voltages available:
– EX 045 LD PAG SP: 12V-24V-48V ACDC, 110V-240V AC
• Colors available: blue – amber – red – green – yellow – clear
• Protection: IP 66
• Maximum surface temperature: T6

Parameter Name	Parameter Value
Type	steady
Technology	LED
Protection level	explosion-proof ATEX
Other characteristics	round AC/DC for explosive atmospheres
