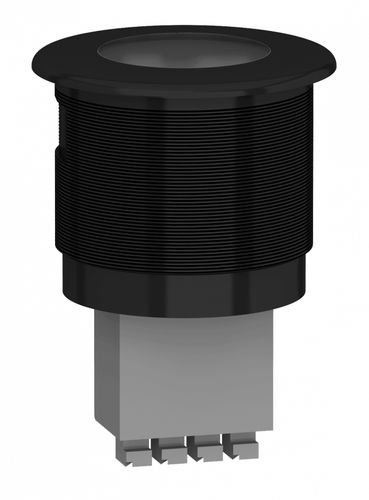

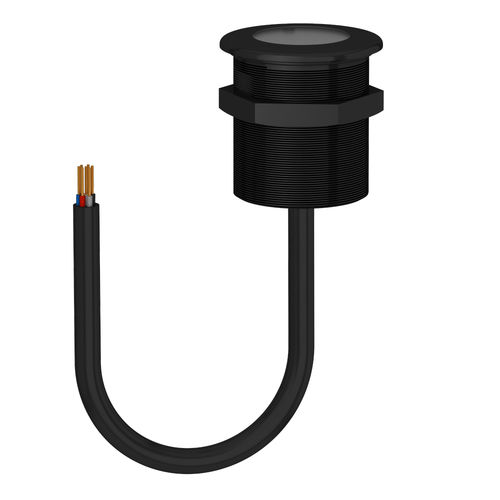

Two-color LED indicators and indicator light

Replaces incandescent lamp indicators
Two-tone indicators for space saving
Lighting of dark areas for machines or electrical cabinets
• Service life: 50,000 hours
• Light type V22: two-color high brightness LED 360 mcd
• Light type V30: two-color high brightness LED 360 mcd
• Lighting colour: red/green or blue/yellow
• Body colour: black, grey, white, red, red, green, opal, yellow
• Mounting V22: M22 thread with nut and seal provided
• Mounting V30: M30 thread with nut and seal provided
• Mounting position: 1
• Material TR90UV
• Food contact: yes
• Washing resistance: yes
• Vandal resistant: yes
• Electrical connection V22/V30: screwless connector 1.5mm²
• Waterproofing DC version: IP 67 and IP 69K
• Waterproofing CV version: IP 67 and IP 69K (front part only)
• Temperature: -20 °C to +55 °C

Parameter Name	Parameter Value
Type	steady
Technology	LED
Mounting	panel-mount
Protection level	IP67 IP69K
