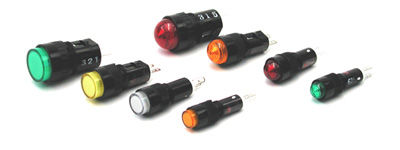

The AP series of pilot lights offer a simple, low cost solution to panel mounted indicating light needs. Available in four panel cutout diameters, with either dome or flat lenses, all units use an integral LED array with built in current limiting resistor. All models mount with a locking ring that fastens from behind the panel, rendering them tamperproof from outside the panel. Termination is via solder terminals of various sizes, depending on the panel cutout. Available in 6V, 12V, or 24V AC/DC; there are also optional snap on transformers and a DC-DC converter to support higher voltages.
Key Features

8mm, 10mm, 12mm, and 16mm round panel cutouts
Super bright LEDs
Built-in current-limiting resistor and reverse polarity protection diode
Dome or flat lenses
Five illumination colors: red, green, amber, yellow, and white
AC adaptor (120V AC and 240V AC) and DC-DC converter (110V DC) options on 12mm and 16mm units
NEMA 4x degree of protection (watertight/oiltight)
UL Recognized, CSA Certified

Parameter Name	Parameter Value
Type	steady
Technology	LED
Mounting	panel-mount
Other characteristics	round
