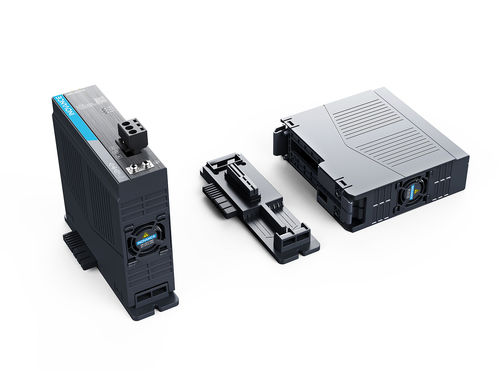

MD800 is answering the call of OEMs for reduced installation costs and smaller machine cabinets
It has a modular design that allows up to 8 drives per rectifier, reducing overall drive footprint by up to 50% compared to traditional single drive modules

Installation time reduced by 2/3:

Mounting plate preparation time reduced by 50%
Assembly time reduced by 50%
Wiring requirements reduced by 2/3
Reduced wiring time with pluggable terminals
High speed communications

1 high-speed bus expansion card supports up to 8 drives
Dual RJ45 ports allow easy wiring
Easy commissioning:

Commissioning time slashed by 2/3
Quick, easy maintenance
Built-in cloning
Smaller machine cabinets

Drive footprint reduced by up to 50% compared to traditional single drive modules

Comprehensive functionality:

Individual STO SIL 3 for each drive
Suitable for open loop asynchronous & PM synchronous motors
+24 VDC control backup supply
IP40 rated
Remote LCD keypad (optional)
Commissioning PC software available
Dual rated:
Heavy duty (HD, G rating): 150% overload
Normal duty (ND, P rating): 110% overload

High level, flexible connectivity:

Built-in I/Os: 4 DI, 4 DI/DO, 2 AI, 1 RO
Standard onboard communications: USB commissioning port, CAN, RS485

Parameter Name	Parameter Value
Mounting	standard built-in
Applications	machine for asynchronous motors for synchronous motor for electrical cabinets
Protection class	IP40
Other characteristics	modular multifunction
Power (W)	800 - 800 2200 - 2200 3700 - 3700 15000 - 15000
