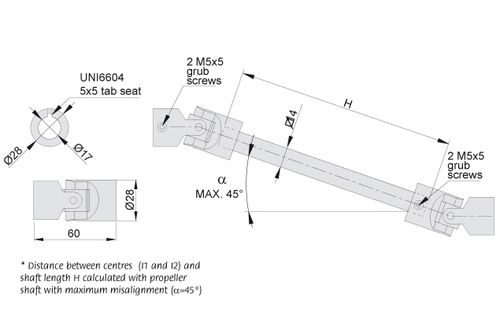

Use: fitted on the angular idler pins, it transmits synchronised movement to 2 positioners; suitable for connecting positioners not aligned with each other (max misalignment 45°).

State of supply shaft and grub screws made of AISI 304 stainless steel; 2 DIN 808-7551 cardan joints in C45 steel and pin in hardened steel with hard-wearing sliding bush in casehardened steel.

Standard pack: 1 piece.

Parameter Name	Parameter Value
Material	stainless steel
Type	universal joint
Product applications	transmission
Torque (Nm)	11.5 - 23
Length (mm)	470 - 1177
