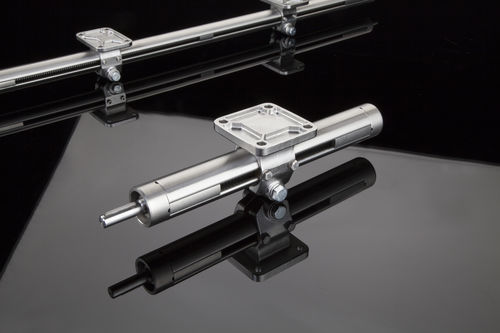

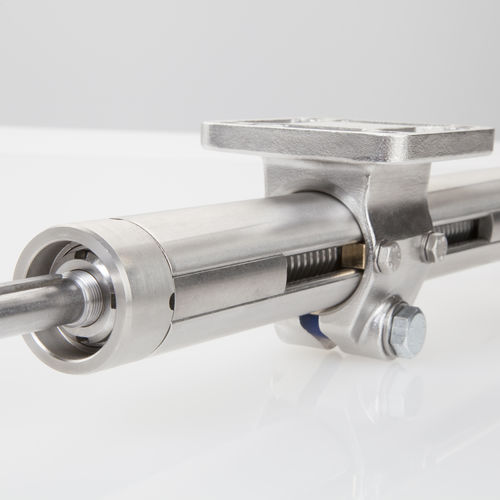

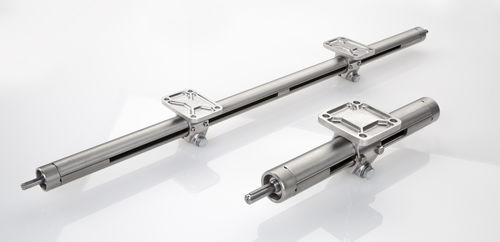

E-II-stainless: 100% corrosion-resistant single-tube linear units

The E-II single-tube linear unit is an all-rounder for format adjustment. The E-II stainless steel is 100% corrosion-resistant and, compared to standard units, it has an upgraded temperature range of -30 to +80°C – a further increase is even available on request. Given that the new stainless steel actuators also operate with FDA-approved lubricants and are also suitable for washing down, they are recommended, for instance, for width, height and length adjustment in packaging machines for the food industry.

Features:
• Units for light to heavy movement applications
• Corrosion-resistant to media, e.g. water
• Suitable for washing down
• FDA-approved lubricants - (Food and Drug Administration)

Options:
• Second free-running guide carriage
• Higher temperature range

Parameter Name	Parameter Value
Operation	electric
Type	trapezoidal screw single tube
Other characteristics	compact with positioning system heavy-duty horizontal guided vertical automated format adjustment for wet environments for overhead installations stainless steel
Stroke (mm)	10 - 2769
Force (N)	500 - 2100
